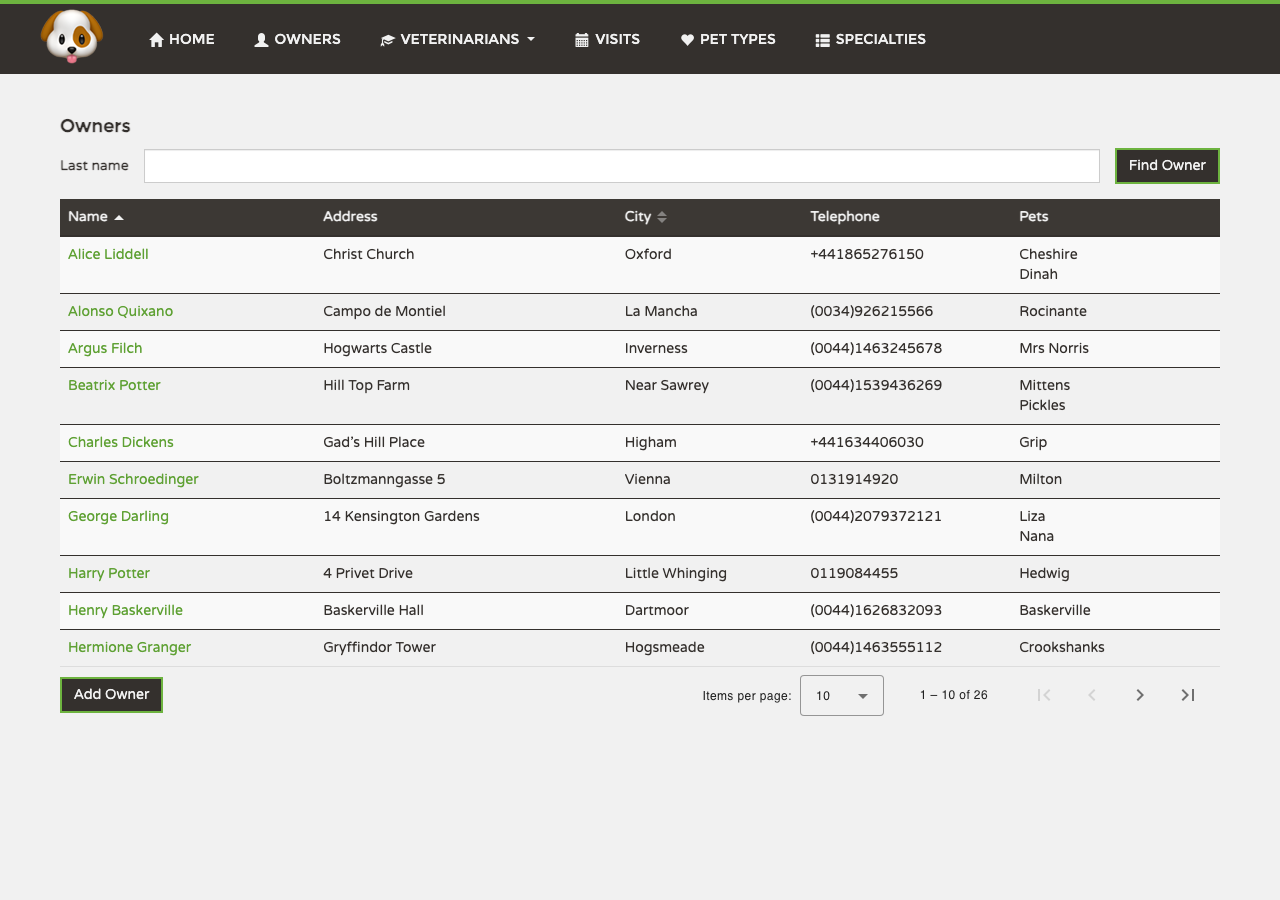

Owners grid: paged and sorted by Name or City

Rerun failed

Review

PR description on GitHub ↗

Closes #25.

Opened for the review demo, do not merge.

4 implementation assumptions · 14 open review issues · 25 auto-fixed

Round I · while coding

Implementation assumptions

Where the ticket was ambiguous: the reading the coder chose.

assumption60% confident Tie-breakers stay ascending whichever way the column sorts on GitHub ↗ in VS Code
Read the other way: tie-breakers follow the clicked direction, one backward index walk
Why 60%: the spec says owners within a city are ordered by name, read as A→Z (openspec/changes/paginate-owners-grid/specs/owner-list/spec.md:56 ↗). Nobody asked how a descending city should order its own names; a reviewer reading "descending" as the whole row reversed would be equally right.
OwnerRestController.java:118
```
+118return Sort.by(direction, "city").and(Sort.by("firstName", "lastName", "id"));
```
assumption65% confident The visit-date scenario leaves its own owner behind on GitHub ↗ in VS Code
Read the other way: delete the owner in the After hook with the pet
Why 65%: matches add-owner.spec.ts, which leaves its owners on purpose; the After hook already deletes the pet. Pulls down: each run adds one more pet-less owner to the dev database.
visit-date-range.feature.glue.ts:20-23
```
+20const {headers: created} = await axios.post(`${API_BASE}/owners`, {
+21  firstName: 'Ada', lastName: `Daterange${Date.now()}`,
+22  address: '110 Analytical Engine Way', city: 'London', telephone: '6085551023',
+23}, {timeout: 10_000});
```
assumption70% confident Add Owner appears twice in the template, not once outside the table on GitHub ↗ in VS Code
Read the other way: one footer row outside #ownersTable, paginator shown conditionally inside it
Why 70%: the acceptance tests select #ownersTable mat-paginator, so the paginator must stay inside the table block; a second button in the empty state keeps that.
owner-list.component.html:16
```
+16<div *ngIf="page?.totalElements === 0 || errorMessage" class="owners-empty-actions">
```
assumption75% confident Seed owner 1 is the add-visit scenario's owner with a pet on GitHub ↗ in VS Code
Read the other way: take the first pet from GET /api/pets
Why 75%: AGENTS.md promises owner 1 = Kevin McCallister to tests, and the DSL fails loudly if he loses his pet. It now books on Kevin every run rather than on whichever owner listed first.
add-visit.dsl.ts:17
```
+17const owner = await new ApiClient().fetchOwner(SEEDED_OWNER_WITH_PET);
```

Round II · code review

Open review issues

Left in the code, each with its reason. They stay open until you agree or disagree.

must look/code-review Booking does not check the pet belongs to the owner on GitHub ↗ in VS Code
Reviewer: POST /api/owners/1/pets/{another owner's pet}/visits books it and texts owner 1; the MCP path checks ownership.
predates the audited range (visit-date commit b23c6d3a); worth its own ticket.
OwnerRestController.java:213
```
 213Pet pet = petRepository.findById(petId).orElseThrow();
```
worth a look/code-review ListGetFirstTest input snippet has unbalanced braces on GitHub ↗ in VS Code
Reviewer: 5190fd3c deleted the firstPet method line from the rewrite input, so the test's Java no longer parses.
the human's own live-coding edit, committed as found at their request.
ListGetFirstTest.java:49
```
 49return owner.getPets().get(0);
```
worth a look/code-review Visit-date rule skipped by the MCP tool and birth-date edits on GitHub ↗ in VS Code
Reviewer: create_visit only requires a future date, and moving a pet's birthDate past its visits is never checked.
the visit-date rule is b23c6d3a's, outside this change set.
PetClinicMcp.java:69
```
 69requireFutureDate(visitDate);
```
worth a look/code-review An undated visit skips the visit-date rule on GitHub ↗ in VS Code
Reviewer: requireValidVisitDate returns on a null date, and VisitMapper overwrites the entity's default with null.
the visit-date rule is b23c6d3a's, outside this change set.
Pet.java:90-92
```
 90if (visitDate == null) {
 91    return;
 92}
```
nit/code-review Domain rule handled as the broad ValidationException on GitHub ↗ in VS Code
Reviewer: Hibernate Validator's own failures (HV000030) now answer 400 at WARN instead of 500 at ERROR.
the handler came with b23c6d3a, outside this change set.
ExceptionControllerAdvice.java:59
```
+59return badRequest(List.of(ex.getMessage()), ex.getMessage(), request);
```
nit/code-review Visit form and server read "today" from different clocks on GitHub ↗ in VS Code
Reviewer: the form's max date uses the browser's timezone, the server's LocalDate.now() the JVM's; they disagree near midnight.
b23c6d3a's visit form, outside this change set.
visit-add.component.ts:26
```
 26readonly maxVisitDate = moment().add(1, 'year').format('YYYY-MM-DD');
```
nit/code-review Visit booking saves the stub Pet, not the loaded one on GitHub ↗ in VS Code
Reviewer: bookVisit loads the Pet only to validate it, then saves the Visit with the mapper's id-only stub.
b23c6d3a's booking path, outside this change set.
VisitRestController.java:75-76
```
 75petRepository.findById(visitDto.getPetId()).orElseThrow()
 76        .requireValidVisitDate(visitDto.getDate(), LocalDate.now());
```

nit/simplify List payload still carries every pet's visits on GitHub ↗ in VS Code

Reviewer: the grid shows pet names, yet each page loads and serializes all visits — one extra batch query and payload.

a slim row is a contract change, a non-goal: openspec/changes/paginate-owners-grid/design.md:72 ↗

PetMapper.java:27-32

 27PetDto petDto = new PetDto()
 28        .setVisits(visitMapper.toVisitsDto(pet.getVisitsSortedByDate()))
 29        .setName(pet.getName())
 30        .setBirthDate(pet.getBirthDate())
 31        .setType(toPetTypeDto(pet.getType()))
 32        .setId(pet.getId());

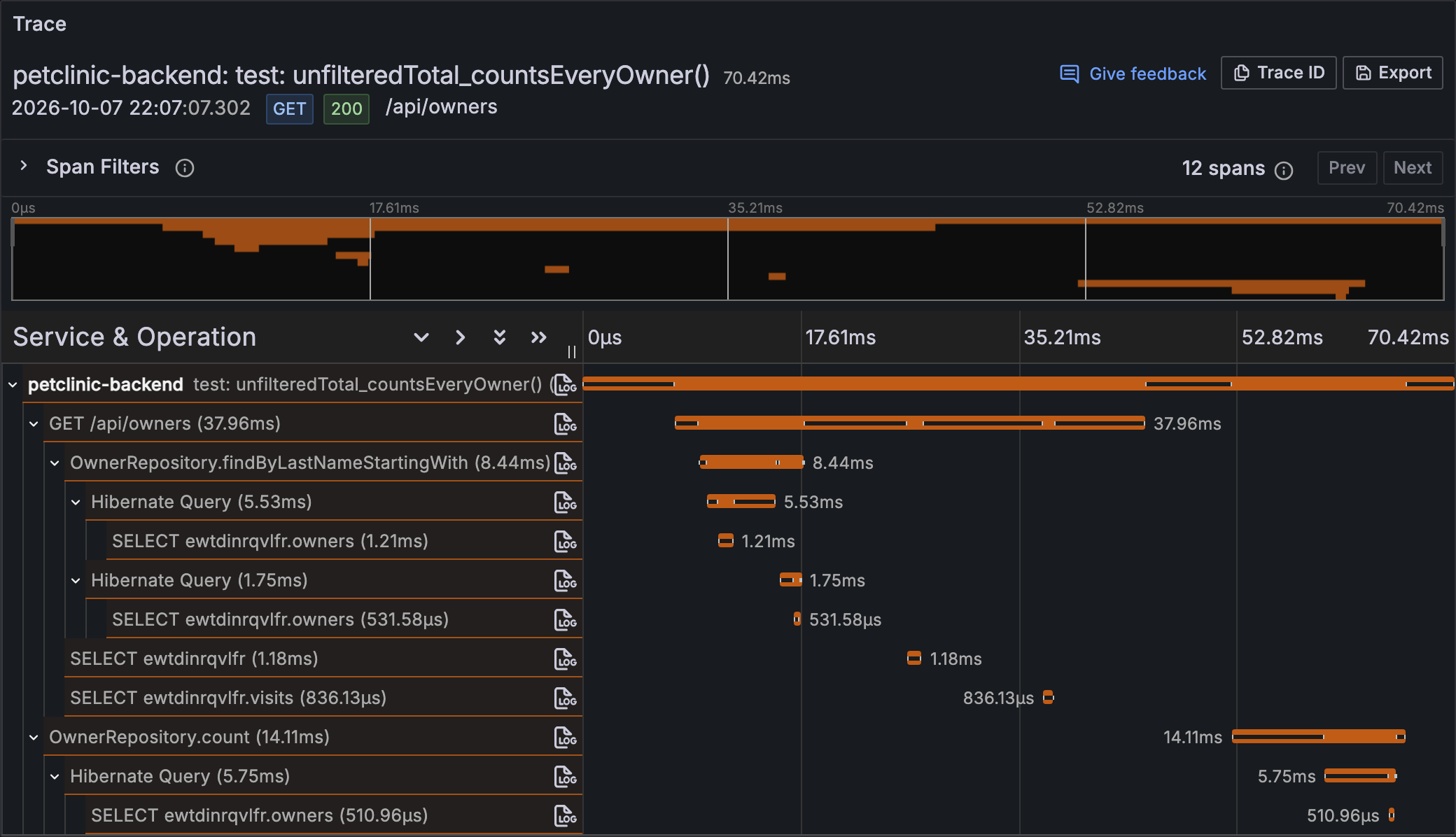

nit/simplify Count query repeated on every page turn on GitHub ↗ in VS Code
Reviewer: Page re-runs count(*) on each click although the total did not change.
accepted at 10 ms for 100k rows: openspec/changes/paginate-owners-grid/design.md:146 ↗
OwnerRestController.java:107-108
```
+107Page<Owner> owners = ownerRepository.findByLastNameStartingWith(lastName,
+108        PageRequest.of(page, size, toSort(sort)));
```
nit/simplify Last page is a 100k-row offset on GitHub ↗ in VS Code
Reviewer: showFirstLastButtons jumps to OFFSET 99990, which walks the whole index.
keyset paging is a non-goal, 24 ms measured: openspec/changes/paginate-owners-grid/design.md:71 ↗
owner-list.component.html:50
```
 50</table>
```
context/code-review Descending sorts mix directions the indexes cannot walk on GitHub ↗ in VS Code
Reviewer: city DESC with names ASC needs an incremental sort over each city's group.
measured at 0.27 ms on 100k rows, openspec/changes/paginate-owners-grid/design.md:134 ↗
OwnerRestController.java:118
```
+118return Sort.by(direction, "city").and(Sort.by("firstName", "lastName", "id"));
```

context/simplify Hand-rolled paging params instead of Spring's Pageable on GitHub ↗ in VS Code

Reviewer: Pageable, @PageableDefault and max-page-size exist for this.

rejected for the sort whitelist and 400-not-clamp: openspec/changes/paginate-owners-grid/design.md:88 ↗

OwnerRestController.java:101-110

+101public OwnerPageDto listOwners(
+102        @RequestParam(defaultValue = "") String lastName,
+103        @RequestParam(defaultValue = "0") @Min(0) @Max(MAX_PAGE) int page,
+104        @RequestParam(defaultValue = "10") @Min(1) @Max(MAX_PAGE_SIZE) int size,
+105        @RequestParam(defaultValue = "name,asc") @Pattern(regexp = "(name|city)(,(asc|desc))?",
+106                message = "must be name or city, optionally followed by ,asc or ,desc") String sort) {
+107    Page<Owner> owners = ownerRepository.findByLastNameStartingWith(lastName,
+108            PageRequest.of(page, size, toSort(sort)));
+109    return ownerMapper.toOwnerPageDto(owners);
+110}

context/simplify Overlapping OwnerListTest cases could be merged on GitHub ↗ in VS Code

Reviewer: the default-page test already proves first-name order, so the Beatrix/Harry test adds nothing.

each test pins one spec scenario: openspec/changes/paginate-owners-grid/specs/owner-list/spec.md:50 ↗

OwnerListTest.java:138-145

138void sortByName_putsFirstNamesFirst() throws Exception {
139    owner("Harry", "Pagerpotter", "London");
140    owner("Beatrix", "Pagerpotter", "Near Sawrey");
141
142    OwnerPageDto page = list("?lastName=Pagerpotter&sort=name,asc");
143
144    assertThat(page.content()).extracting(OwnerDto::getFirstName).containsExactly("Beatrix", "Harry");
145}

context/simplify Shared aPage fixture builder for the specs on GitHub ↗ in VS Code

Reviewer: two specs each build their own OwnerPage fixture.

two uses; the reviewer itself said not worth it until a third.

owner-list.component.spec.ts:42-47

 42schemas: [NO_ERRORS_SCHEMA],
+43imports: [CommonModule, FormsModule, NoopAnimationsModule, OwnersModule, RouterTestingModule],
 44providers: [
+45  {provide: OwnerService, useClass: OwnerServiceStub},
 46  {provide: ActivatedRoute, useClass: ActivatedRouteStub}
 47]

Round III · fixing the review

Auto-fixed

Fixed by the review in 4 fix commits: 5190fd3c, 3ef70228, 1bdb4c61, d01c3776. Diffs against 0b99e29c, the implementation commit. 3 commits carry a Review-Points: trailer; the page reads them as one round of fixes, from the implementation to the last of them.

fixed/code-review Add Owner vanished when a search matched nobody on GitHub ↗ in VS Code

Reviewer: the button moved inside #ownersTable, rendered only when totalElements > 0; on no match, an error or an empty clinic there was no way to /owners/add.

owner-list.component.html+17 −8


13	13
14	14	<div *ngIf="errorMessage" id="ownersError" class="alert alert-danger">Could not load the owners: {{ errorMessage }}</div>
15	15	<div *ngIf="page?.totalElements === 0" id="noOwners">No owners with last name starting with "{{ query.lastName }}"</div>
	16	+ <div *ngIf="page?.totalElements === 0 \|\| errorMessage" class="owners-empty-actions">
	17	+ <button class="btn btn-default" routerLink="/owners/add">Add Owner</button>
	18	+ </div>
16	19	<div class="table-responsive" id="ownersTable" *ngIf="page && page.totalElements > 0">
17		- <table class="table table-striped"
18		- matSort [matSortActive]="sortColumn" [matSortDirection]="sortDirection" matSortDisableClear
19		- (matSortChange)="onSort($event)">
	20	+ <table class="table table-striped">
20	21	<thead>
21	22	<tr>
22		- <th mat-sort-header="name">Name</th>
23		- <th>Address</th>
24		- <th mat-sort-header="city">City</th>
25		- <th>Telephone</th>
26		- <th>Pets</th>
	23	+ <th class="col-name sortable" [attr.aria-sort]="ariaSort('name')">
	24	+ <button type="button" class="sort-button" (click)="sortBy('name')">
	25	+ Name<span class="sort-indicator" [ngClass]="indicator('name')"></span>
	26	+ </button>
	27	+ </th>
	28	+ <th class="col-address">Address</th>
	29	+ <th class="col-city sortable" [attr.aria-sort]="ariaSort('city')">
	30	+ <button type="button" class="sort-button" (click)="sortBy('city')">
	31	+ City<span class="sort-indicator" [ngClass]="indicator('city')"></span>
	32	+ </button>
	33	+ </th>
	34	+ <th class="col-telephone">Telephone</th>
	35	+ <th class="col-pets">Pets</th>
27	36	</tr>
28	37	</thead>
29	38

owner-list.component.spec.ts+41 −10

		describe('OwnerListComponent', () => {
124	115	});
125	116
126	117	it('a new sort goes back to the first page', () => {
127		- url.set({page: '3'});
	118	+ route.setQueryParams({page: '3'});
128	119	fixture.detectChanges();
129	120
130		- component.onSort({active: 'city', direction: 'desc'});
	121	+ component.sortBy('city');
131	122
132		- expect(navigatedTo()).toEqual({sort: 'city,desc'});
	123	+ expect(navigatedTo()).toEqual({sort: 'city,asc'});
133	124	});
134	125
135	126	it('leaves the URL clean when everything is back to its default', () => {
136		- url.set({page: '2', sort: 'city,asc'});
	127	+ route.setQueryParams({page: '2', sort: 'city,asc'});
137	128	fixture.detectChanges();
138	129
139		- component.onSort({active: 'name', direction: 'asc'});
	130	+ component.sortBy('name');
140	131
141	132	expect(navigatedTo()).toEqual({});
142	133	});
143	134
144		- it('only Name and City can be sorted', () => {
	135	+ it('clicking the sorted column flips its direction', () => {
	136	+ route.setQueryParams({sort: 'city,asc'});
	137	+ fixture.detectChanges();
	138	+
	139	+ component.sortBy('city');
	140	+
	141	+ expect(navigatedTo()).toEqual({sort: 'city,desc'});
	142	+ });
	143	+
	144	+ it('only Name and City can be sorted, and the active one says which way', () => {
	145	+ route.setQueryParams({sort: 'city,desc'});
145	146	fixture.detectChanges();
146	147
147		- const sortable = fixture.debugElement.queryAll(By.css('th[mat-sort-header]'))
148		- .map((th) => th.attributes['mat-sort-header']);
149		- expect(sortable).toEqual(['name', 'city']);
	148	+ const sortable = fixture.debugElement.queryAll(By.css('th.sortable'));
	149	+ expect(sortable.map((th) => th.nativeElement.textContent.trim())).toEqual(['Name', 'City']);
	150	+ expect(sortable.map((th) => th.nativeElement.getAttribute('aria-sort'))).toEqual([null, 'descending']);
150	151	});
151	152
152	153	it('says no owner matched when the search finds none', () => {
153	154	getOwnersPage.and.returnValue(of(aPage([])));
154		- url.set({lastName: 'Zzzz'});
	155	+ route.setQueryParams({lastName: 'Zzzz'});
155	156	fixture.detectChanges();
156	157
157	158	expect(text('#noOwners')).toBe('No owners with last name starting with "Zzzz"');
158	159	expect(fixture.debugElement.query(By.css('#ownersTable'))).toBeNull();
159	160	});
160	161
	162	+ // An owner nobody found is exactly the one about to be added.
	163	+ it('still offers Add Owner when the search finds none', () => {
	164	+ getOwnersPage.and.returnValue(of(aPage([])));
	165	+ route.setQueryParams({lastName: 'Zzzz'});
	166	+ fixture.detectChanges();
	167	+
	168	+ expect(text('button[routerLink="/owners/add"]')).toBe('Add Owner');
	169	+ });
	170	+
	171	+ it('searching again for the same name asks again, though the URL does not change', () => {
	172	+ route.setQueryParams({lastName: 'Pot'});
	173	+ fixture.detectChanges();
	174	+ getOwnersPage.calls.reset();
	175	+
	176	+ component.lastName = 'Pot';
	177	+ component.search();
	178	+
	179	+ expect(navigate).not.toHaveBeenCalled();
	180	+ expect(getOwnersPage).toHaveBeenCalledWith({lastName: 'Pot', page: 0, size: 10, sort: 'name,asc'});
	181	+ });
	182	+
161	183	it('shows a failure as an error, not as "no owners"', () => {
162	184	getOwnersPage.and.returnValue(throwError('server returned code 500'));
163	185	fixture.detectChanges();

Fix: the empty and error states show their own Add Owner under the message.

fixed/code-review Bad page input answered 500 instead of 400 on GitHub ↗ in VS Code

Reviewer: ?page=abc hit the catch-all handler as a type mismatch; ?page=30000000&size=100 overflowed Spring Data's int offset. Both logged at ERROR as 500.

OwnerRestController.java+2 −0

		import jakarta.validation.constraints.Pattern;
57	57	public class OwnerRestController {
58	58
59	59	static final int MAX_PAGE_SIZE = 100;
	60	+ // page * size must stay an int: Spring Data's offset overflows past it
	61	+ static final int MAX_PAGE = Integer.MAX_VALUE / MAX_PAGE_SIZE;
60	62
61	63	private final OwnerRepository ownerRepository;
62	64	private final PetRepository petRepository;

OwnerListTest.java+14 −0

		class OwnerListTest {
120	120	.andExpect(jsonPath("$.errors[0]").value(containsString("page")));
121	121	}
122	122
	123	+ @Test
	124	+ void pageThatIsNotANumber_isRejected() throws Exception {
	125	+ mockMvc.perform(get("/api/owners?page=abc"))
	126	+ .andExpect(status().isBadRequest())
	127	+ .andExpect(jsonPath("$.errors[0]").value(containsString("page")));
	128	+ }
	129	+
	130	+ @Test
	131	+ void pageWhoseOffsetWouldOverflow_isRejected() throws Exception {
	132	+ mockMvc.perform(get("/api/owners?page=30000000&size=100"))
	133	+ .andExpect(status().isBadRequest())
	134	+ .andExpect(jsonPath("$.errors[0]").value(containsString("page")));
	135	+ }
	136	+
123	137	@Test
124	138	void sortByName_putsFirstNamesFirst() throws Exception {
125	139	owner("Harry", "Pagerpotter", "London");

OwnerRestController.java+2 −3

		public class OwnerRestController {
98	100	@GetMapping(produces = "application/json")
99	101	public OwnerPageDto listOwners(
100	102	@RequestParam(defaultValue = "") String lastName,
101		- @RequestParam(defaultValue = "0") @Min(0) int page,
	103	+ @RequestParam(defaultValue = "0") @Min(0) @Max(MAX_PAGE) int page,
102	104	@RequestParam(defaultValue = "10") @Min(1) @Max(MAX_PAGE_SIZE) int size,
103	105	@RequestParam(defaultValue = "name,asc") @Pattern(regexp = "(name\|city)(,(asc\|desc))?",
104	106	message = "must be name or city, optionally followed by ,asc or ,desc") String sort) {
105	107	Page<Owner> owners = ownerRepository.findByLastNameStartingWith(lastName,
106	108	PageRequest.of(page, size, toSort(sort)));
107		- return new OwnerPageDto(ownerMapper.toOwnerDtoCollection(owners.getContent()),
108		- owners.getTotalElements(), owners.getTotalPages(), owners.getNumber(), owners.getSize());
	109	+ return ownerMapper.toOwnerPageDto(owners);
109	110	}
110	111
111	112	// The direction applies to the clicked column only; the tie-breakers stay ascending and end

ExceptionControllerAdvice.java+17 −16

		public class ExceptionControllerAdvice {
46	47	}
47	48
48	49	@ExceptionHandler(ConstraintViolationException.class)
49		- @ResponseStatus(HttpStatus.BAD_REQUEST)
	50	+ @ResponseStatus(HttpStatus.BAD_REQUEST) // springdoc documents the 400 on every operation from this
50	51	public ResponseEntity<ProblemDetail> handleConstraintViolation(ConstraintViolationException ex,
51	52	HttpServletRequest request) {
52		- List<String> errors = ValidationErrorExtractor.extract(ex);
53		- log.warn("Validation failed: {}", errors);
54		- ProblemDetail pd = buildProblemDetail("Validation Error",
55		- "Validation failed for request. See 'errors' for details.", HttpStatus.BAD_REQUEST, request);
56		- pd.setProperty("errors", errors);
57		- return ResponseEntity.badRequest().body(pd);
	53	+ return badRequest(ValidationErrorExtractor.extract(ex), SEE_ERRORS, request);
58	54	}
59	55
60	56	@ExceptionHandler(ValidationException.class)
61	57	public ResponseEntity<ProblemDetail> handleValidationException(ValidationException ex,
62	58	HttpServletRequest request) {
63		- log.warn("Validation failed: {}", ex.getMessage());
64		- ProblemDetail pd = buildProblemDetail("Validation Error", ex.getMessage(), HttpStatus.BAD_REQUEST, request);
65		- pd.setProperty("errors", List.of(ex.getMessage()));
66		- return ResponseEntity.badRequest().body(pd);
	59	+ return badRequest(List.of(ex.getMessage()), ex.getMessage(), request);
67	60	}
68	61
69	62	@ExceptionHandler(MethodArgumentNotValidException.class)
70	63	@ResponseStatus(HttpStatus.BAD_REQUEST)
71	64	public ResponseEntity<ProblemDetail> handleMethodArgumentNotValidException(MethodArgumentNotValidException ex,
72	65	HttpServletRequest request) {
73		- BindingResult bindingResult = ex.getBindingResult();
74		- // reuse ValidationErrorExtractor style: build list of readable messages
75		- List<String> errors = ValidationErrorFieldExtractor.extract(bindingResult);
	66	+ return badRequest(ValidationErrorFieldExtractor.extract(ex.getBindingResult()), SEE_ERRORS, request);
	67	+ }
	68	+
	69	+ // A query or path parameter that does not parse (?page=abc) is the client's mistake, not a crash
	70	+ @ExceptionHandler(MethodArgumentTypeMismatchException.class)
	71	+ public ResponseEntity<ProblemDetail> handleTypeMismatch(MethodArgumentTypeMismatchException ex,
	72	+ HttpServletRequest request) {
	73	+ String type = ex.getRequiredType() == null ? "value" : ex.getRequiredType().getSimpleName();
	74	+ return badRequest(List.of(ex.getName() + " must be a " + type + " (value: " + ex.getValue() + ")"),
	75	+ SEE_ERRORS, request);
	76	+ }
	77	+
	78	+ private ResponseEntity<ProblemDetail> badRequest(List<String> errors, String detail, HttpServletRequest request) {
76	79	log.warn("Validation failed: {}", errors);
77		- ProblemDetail pd = buildProblemDetail("Validation Error",
78		- "Validation failed for request. See 'errors' for details.", HttpStatus.BAD_REQUEST, request);
	80	+ ProblemDetail pd = buildProblemDetail("Validation Error", detail, HttpStatus.BAD_REQUEST, request);
79	81	pd.setProperty("errors", errors);
80	82	return ResponseEntity.badRequest().body(pd);
81	83	}

Fix: type mismatches map to 400 for every endpoint; page is capped at Integer.MAX_VALUE / MAX_PAGE_SIZE.

fixed/code-review Find Owner with an unchanged name did not search again on GitHub ↗ in VS Code

Reviewer: search() only navigates; an identical URL emits nothing, so a repeated search showed stale results where the old grid re-fetched.

owner-list.component.ts+6 −1

		export class OwnerListComponent implements OnInit, OnDestroy {
60	56	}
61	57
62	58	search() {
63		- this.navigate({lastName: this.lastName, page: 1});
	59	+ const searched = {...this.query, lastName: this.lastName, page: 1};
	60	+ if (JSON.stringify(toUrl(searched)) === JSON.stringify(toUrl(this.query))) {
	61	+ this.reload.next(searched);
	62	+ return;
	63	+ }
	64	+ this.navigate(searched);
64	65	}
65	66
66	67	onPage(event: PageEvent) {

owner-list.component.ts+6 −5

		export class OwnerListComponent implements OnInit, OnDestroy {
33	28	page: OwnerPage \| undefined;
34	29	errorMessage: string \| undefined;
35	30	private load: Subscription;
	31	+ // Asks again for the query already in the URL: navigating to an identical URL emits nothing.
	32	+ private readonly reload = new Subject<OwnerListQuery>();
36	33
37		- constructor(private router: Router, private route: ActivatedRoute, private ownerService: OwnerService) {
	34	+ constructor(private readonly router: Router, private readonly route: ActivatedRoute,
	35	+ private readonly ownerService: OwnerService) {
38	36	}
39	37
40	38	ngOnInit() {
41		- this.load = this.route.queryParamMap.pipe(
42		- map(fromUrl),
	39	+ this.load = merge(this.route.queryParamMap.pipe(map(fromUrl)), this.reload).pipe(
43	40	tap((query) => {
44	41	this.query = query;
45	42	this.lastName = query.lastName;
46	43	}),
47	44	// switchMap: only the latest query may answer, however late an earlier one comes back
48		- switchMap((query) => this.ownerService.getOwnersPage(
49		- {lastName: query.lastName, page: query.page - 1, size: query.size, sort: query.sort}).pipe(
	45	+ switchMap((query) => this.ownerService.getOwnersPage({...query, page: query.page - 1}).pipe(
50	46	catchError((error) => {
51	47	this.errorMessage = String(error);
52	48	this.page = undefined;

owner-list.component.spec.ts: diff shown under Add Owner vanished when a search matched nobody.

Fix: an unchanged query is pushed through a reload subject merged into the URL stream.

fixed/code-review Hibernate statistics left switched on for the cached context on GitHub ↗ in VS Code

Reviewer: the batch-fetch test enabled statistics on the shared SessionFactory and never disabled them, so later tests reusing the context paid for and inherited them.

OwnerListTest.java+8 −5

		class OwnerListTest {
201	215	Statistics statistics = entityManager.getEntityManagerFactory().unwrap(SessionFactory.class).getStatistics();
202	216	statistics.setStatisticsEnabled(true);
203	217	statistics.clear();
204		-
205		- list("?size=20");
206		-
207		- // page + count + one batch of pets + one batch of visits (+ pet types)
208		- assertThat(statistics.getPrepareStatementCount()).isLessThanOrEqualTo(5);
	218	+ try {
	219	+ list("?size=20");
	220	+
	221	+ // page + count + one batch of pets + one batch of visits (+ pet types)
	222	+ assertThat(statistics.getPrepareStatementCount()).isLessThanOrEqualTo(5);
	223	+ } finally {
	224	+ statistics.setStatisticsEnabled(false); // the SessionFactory outlives this test
	225	+ }
209	226	}
210	227
211	228	private Owner owner(String firstName, String lastName, String city) {

Fix: try/finally switches them off.

fixed/code-review Visit-date scenario still read the owner list as an array on GitHub ↗ in VS Code

Reviewer: owners.reduce is not a function failed both visit-date-range scenarios in their Background once the list became a page.

visit-date-range.feature.glue.ts+11 −6

		Given('today is {word}', async function (this: PlaywrightWorld, today: string) {
13	13	await this.page.clock.setFixedTime(new Date(`${today}T10:00:00`));
14	14	});
15	15
16		-/** A pet of its own, on the last owner — the seed has none born that day, and no other scenario looks there. */
	16	+const idFrom = (location: string) => Number(location.split('/').pop());
	17	+
	18	+/** A pet of its own, on an owner of its own — no other scenario looks there. */
17	19	Given('a pet born on {word}', async function (this: PlaywrightWorld, birthDate: string) {
18		- const {data: owners} = await axios.get(`${API_BASE}/owners`, {timeout: 10_000});
19		- const owner = owners.reduce((a: any, b: any) => (a.id > b.id ? a : b));
	20	+ const {headers: created} = await axios.post(`${API_BASE}/owners`, {
	21	+ firstName: 'Ada', lastName: `Daterange${Date.now()}`,
	22	+ address: '110 Analytical Engine Way', city: 'London', telephone: '6085551023',
	23	+ }, {timeout: 10_000});
	24	+ const ownerId = idFrom(created.location);
20	25	const name = `Born ${birthDate} ${Date.now()}`;
21		- const {headers} = await axios.post(`${API_BASE}/owners/${owner.id}/pets`,
	26	+ const {headers} = await axios.post(`${API_BASE}/owners/${ownerId}/pets`,
22	27	{name, birthDate, type: {id: 1, name: 'cat'}}, {timeout: 10_000});
23		- this.ownerId = owner.id;
24		- this.createdPetId = this.petId = Number(headers.location.split('/').pop());
	28	+ this.ownerId = ownerId;
	29	+ this.createdPetId = this.petId = idFrom(headers.location);
25	30	this.petName = name;
26	31	});
27	32

Fix: the scenario creates its own owner and puts the pet on it.

fixed/code-review AddVisitApiTest sequence diagram showed the old list call on GitHub ↗ in VS Code
Reviewer: the committed diagram still drew "List owners" with an array payload; only the browser suites' diagrams had been re-traced.
Fix: re-traced with petclinic-backend/run-tests-with-tracing.sh.
AddVisitApiTest.java.adds-a-visit-to-an-existing-pet.genseq.puml:16
```
+16Test -> Backend: List one page of owners\nGET /api/owners
```
fixedCI (SonarCloud java:S1192) Validation responses built from the same literals four times on GitHub ↗ in VS Code
CI: "Validation failed: {}", "Validation Error" and "errors" were duplicated across the 400 handlers; the new type-mismatch handler made it a fourth copy.
ExceptionControllerAdvice.java: diff shown under Bad page input answered 500 instead of 400.
Fix: one badRequest helper builds every validation 400.

fixed/simplify Dead stylesheet rules from an earlier pager layout on GitHub ↗ in VS Code

Reviewer: about 80 lines (#nameGroup, .owners-pagination, .owner-search-label, …) matched nothing in the template, beside the live rules.

owner-list.component.css+18 −80


1		-#ownersByLastName
2		-{
3		-display:none;
4		-}
5		-
6		-#nameGroup {
7		- display: flex;
8		- align-items: center;
9		- gap: 16px;
10		- margin-left: 0;
11		- margin-right: 0;
12		- padding-left: 0;
13		-}
14		-
15		-#addressGroup {
16		- display: flex;
17		- align-items: center;
18		- gap: 16px;
19		- margin-left: 0;
20		- margin-right: 0;
21		- padding-left: 0;
22		-}
23		-
24		-.owner-search-label {
25		- margin: 0;
26		- text-align: left;
27		- min-width: 60px;
28		-}
29		-
30		-.owner-search-input {
31		- flex: 1;
32		-}
33		-
34		-.owners-controls {
35		- display: flex;
36		- align-items: center;
37		- justify-content: space-between;
38		- gap: 16px;
39		- margin-bottom: 16px;
40		-}
41		-
42		-.owners-pagination {
43		- display: flex;
44		- align-items: center;
45		- gap: 12px;
46		-}
47		-
48		-.owners-page-size {
	1	+/* One row as wide as the table: label, stretching input, search button */
	2	+.owner-search-row {
49	3	display: flex;
50	4	align-items: center;
51		- gap: 8px;
	5	+ gap: 15px;
	6	+ margin-bottom: 15px;
52	7	}
53	8
54		-.owners-page-size .form-control {
55		- width: auto;
	9	+.owner-search-row label {
	10	+ margin-bottom: 0;
	11	+ white-space: nowrap;
56	12	}
57	13
58		-@media (max-width: 576px) {
59		- #nameGroup {
60		- flex-direction: column;
61		- align-items: flex-start;
62		- gap: 8px;
63		- }
64		-
65		- #addressGroup {
66		- flex-direction: column;
67		- align-items: flex-start;
68		- gap: 8px;
69		- }
70		-
71		- .owner-search-input {
72		- width: 100%;
73		- }
74		-
75		- .owners-controls {
76		- flex-direction: column;
77		- align-items: flex-start;
78		- }
	14	+.owner-search-row button {
	15	+ flex-shrink: 0;
79	16	}
80	17
81	18	/* Fixed widths: auto layout sized the columns to each page's rows, so the headers jumped on every sort. */
82	19	#ownersTable table {
83	20	table-layout: fixed;
	21	+ margin-bottom: 0;
84	22	}
85	23
86		-#ownersTable th:nth-child(1) { width: 22%; }
87		-#ownersTable th:nth-child(2) { width: 26%; }
88		-#ownersTable th:nth-child(3) { width: 16%; }
89		-#ownersTable th:nth-child(4) { width: 18%; }
90		-#ownersTable th:nth-child(5) { width: 18%; }
	24	+.col-name { width: 22%; }
	25	+.col-address { width: 26%; }
	26	+.col-city { width: 16%; }
	27	+.col-telephone { width: 18%; }
	28	+.col-pets { width: 18%; }
91	29
92	30	#ownersTable td {
93	31	overflow-wrap: anywhere;
94	32	}
95	33
96		-/* Paginator reads as the table's footer: no gap, no white panel */
97		-#ownersTable table {
98		- margin-bottom: 0;
	34	+.owners-empty-actions {
	35	+ margin-top: 15px;
99	36	}
100	37
	38	+/* Paginator reads as the table's footer: no gap, no white panel */
101	39	.owners-footer {
102	40	display: flex;
103	41	align-items: center;

Fix: deleted; the two #ownersTable table rules merged into one.

fixed/simplify Label rules only undid form-horizontal on GitHub ↗ in VS Code

Reviewer: the form kept form-horizontal only for its control-label styling, which the search-row rules then reset property by property.

owner-list.component.html+2 −2


2	2	<div class="container xd-container">
3	3	<h2>Owners</h2>
4	4
5		- <form class="form-horizontal" id="search-owner-form" (ngSubmit)="search()">
	5	+ <form id="search-owner-form" (ngSubmit)="search()">
6	6	<div class="owner-search-row">
7		- <label class="control-label" for="lastName">Last name</label>
	7	+ <label for="lastName">Last name</label>
8	8	<input class="form-control" size="30"
9	9	maxlength="80" id="lastName" name="lastName" [(ngModel)]="lastName"/>
10	10	<button type="submit" class="btn btn-default">Find Owner</button>

owner-list.component.css: diff shown under Dead stylesheet rules from an earlier pager layout.

Fix: dropped the class; only margin and nowrap remain.

fixed/simplify Sort arrows overrode Material's private DOM with !important on GitHub ↗ in VS Code

Reviewer: ::ng-deep rules hid .mat-sort-header-arrow's children and cancelled its animation styles; a Material upgrade breaks them silently.

owner-list.component.ts+19 −5

		export class OwnerListComponent implements OnInit, OnDestroy {
68	69	this.navigate({size: event.pageSize, page: sizeChanged ? 1 : event.pageIndex + 1});
69	70	}
70	71
71		- onSort(sort: Sort) {
72		- this.navigate({sort: `${sort.active},${sort.direction \|\| 'asc'}`, page: 1});
	72	+ // A click on the sorted column flips its direction; on the other one it sorts ascending.
	73	+ sortBy(column: SortColumn) {
	74	+ const direction = this.sortColumn === column && this.sortDirection === 'asc' ? 'desc' : 'asc';
	75	+ this.navigate({sort: `${column},${direction}`, page: 1});
	76	+ }
	77	+
	78	+ ariaSort(column: SortColumn): 'ascending' \| 'descending' \| null {
	79	+ if (this.sortColumn !== column) {
	80	+ return null;
	81	+ }
	82	+ return this.sortDirection === 'asc' ? 'ascending' : 'descending';
	83	+ }
	84	+
	85	+ indicator(column: SortColumn) {
	86	+ const active = this.sortColumn === column;
	87	+ return {active, asc: active && this.sortDirection === 'asc', desc: active && this.sortDirection === 'desc'};
73	88	}
74	89
75		- get sortColumn(): string {
	90	+ private get sortColumn(): string {
76	91	return this.query.sort.split(',')[0];
77	92	}
78	93
79		- get sortDirection(): 'asc' \| 'desc' {
80		- return this.query.sort.endsWith('desc') ? 'desc' : 'asc';
	94	+ private get sortDirection(): string {
	95	+ return this.query.sort.split(',')[1];
81	96	}
82	97
83	98	private show(page: OwnerPage) {

owner-list.component.css+23 −41

		display:none;
109	47	background: transparent;
110	48	}
111	49
112		-/* One row as wide as the table: label, stretching input, search button */
113		-.owner-search-row {
114		- display: flex;
115		- align-items: center;
116		- gap: 15px;
117		- margin-bottom: 15px;
118		-}
119		-
120		-.owner-search-row .control-label {
121		- padding-top: 0;
122		- margin-bottom: 0;
123		- text-align: left;
124		- white-space: nowrap;
125		-}
126		-
127		-.owner-search-row button {
128		- flex-shrink: 0;
129		-}
130		-
131	50	/* Sort indicator: a dim ▲▼ pair marks a sortable column, a bright ▲ or ▼ the active sort. */
132		-/* Replaces Material's stem+halves arrow; !important beats its animations' inline styles. */
133		-::ng-deep #ownersTable .mat-sort-header-arrow {
	51	+/* A button, so the sort is reachable from the keyboard; styled to read as the header text */
	52	+.sort-button {
	53	+ padding: 0;
	54	+ border: 0;
	55	+ background: none;
	56	+ color: inherit;
	57	+ font: inherit;
	58	+ cursor: pointer;
	59	+}
	60	+
	61	+.sort-indicator {
	62	+ display: inline-flex;
134	63	flex-direction: column;
135		- justify-content: center;
136		- align-items: center;
137	64	gap: 2px;
138		- width: 10px;
139		- min-width: 10px;
140		- color: #fff;
141		- opacity: 0.4 !important;
142		- transform: none !important;
	65	+ margin-left: 6px;
	66	+ vertical-align: middle;
	67	+ opacity: 0.4;
143	68	}
144	69
145		-::ng-deep #ownersTable .mat-sort-header-arrow > * {
146		- display: none;
	70	+.sort-indicator.active {
	71	+ opacity: 1;
147	72	}
148	73
149		-::ng-deep #ownersTable .mat-sort-header-arrow::before,
150		-::ng-deep #ownersTable .mat-sort-header-arrow::after {
	74	+.sort-indicator::before,
	75	+.sort-indicator::after {
151	76	content: '';
152	77	border-left: 5px solid transparent;
153	78	border-right: 5px solid transparent;
154	79	}
155	80
156		-::ng-deep #ownersTable .mat-sort-header-arrow::before {
	81	+.sort-indicator::before {
157	82	border-bottom: 5px solid currentColor;
158	83	}
159	84
160		-::ng-deep #ownersTable .mat-sort-header-arrow::after {
	85	+.sort-indicator::after {
161	86	border-top: 5px solid currentColor;
162	87	}
163	88
164		-::ng-deep #ownersTable th[aria-sort="ascending"] .mat-sort-header-arrow,
165		-::ng-deep #ownersTable th[aria-sort="descending"] .mat-sort-header-arrow {
166		- opacity: 1 !important;
167		-}
168		-
169		-::ng-deep #ownersTable th[aria-sort="ascending"] .mat-sort-header-arrow::after,
170		-::ng-deep #ownersTable th[aria-sort="descending"] .mat-sort-header-arrow::before {
	89	+.sort-indicator.asc::after,
	90	+.sort-indicator.desc::before {
171	91	display: none;
172	92	}

owner-list.component.html: diff shown under Add Owner vanished when a search matched nobody.

Fix: the headers draw ▲/▼ from the component's own sort state; MatSort is gone, along with the dead || 'asc'.

fixed/simplify Column widths tied to column order on GitHub ↗ in VS Code
Reviewer: th:nth-child(1..5) widths go wrong silently when a column is added or moved.
owner-list.component.css: diff shown under Dead stylesheet rules from an earlier pager layout.
owner-list.component.html: diff shown under Add Owner vanished when a search matched nobody.
Fix: one class per column.
fixed/simplify Shell padding zeroed to undo its own container-fluid on GitHub ↗ in VS Code
Reviewer: .main-wrapper padding was set to 0 to cancel the gutter of the container-fluid class on the same div.
app.component.html+1 −1

1 -<div class="container-fluid main-wrapper">
1 +<div class="main-wrapper">
2 2 <nav class="navbar navbar-default " role="navigation">
3 3 <div class="container-fluid">
4 4 <div class="navbar-header">
app.component.css+0 −3
body {
8 8
9 9 .main-wrapper {
10 10 flex: 1;
11 - /* the navbar runs edge to edge, not inside the container's gutter */
12 - padding-left: 0;
13 - padding-right: 0;
14 11 }
15 12
16 13 div.navbar-header {
Fix: removed the class instead.

fixed/simplify Query types written by hand beside the generated one on GitHub ↗ in VS Code

Reviewer: OwnerQuery and OwnerListQuery restated listOwners' parameters, so a backend parameter change would not break the frontend build.

owner.service.ts+2 −6


1	1	import { Injectable } from '@angular/core';
2	2	import { Owner } from './owner';
3	3	import { OwnerPage } from './owner-page';
	4	+import { operations } from '../generated/api-types';
4	5	import { Observable } from 'rxjs';
5	6	import { environment } from '../../environments/environment';
6	7	import { HttpClient, HttpParams } from '@angular/common/http';
7	8	import { catchError } from 'rxjs/operators';
8	9	import { HandleError, HttpErrorHandler } from '../error.service';
9	10
10		-export interface OwnerQuery {
11		- lastName?: string;
12		- page?: number;
13		- size?: number;
14		- sort?: string;
15		-}
	11	+export type OwnerQuery = NonNullable<operations['listOwners']['parameters']['query']>;
16	12
17	13	@Injectable()
18	14	export class OwnerService {

owner-list.component.ts+5 −10


1	1	import {Component, OnDestroy, OnInit} from '@angular/core';
2	2	import {ActivatedRoute, ParamMap, Params, Router} from '@angular/router';
3	3	import {PageEvent} from '@angular/material/paginator';
4		-import {Sort} from '@angular/material/sort';
5		-import {EMPTY, Subscription} from 'rxjs';
	4	+import {EMPTY, merge, Subject, Subscription} from 'rxjs';
6	5	import {catchError, map, switchMap, tap} from 'rxjs/operators';
7		-import {OwnerService} from '../owner.service';
	6	+import {OwnerQuery, OwnerService} from '../owner.service';
8	7	import {OwnerPage} from '../owner-page';
9	8
10		-/** What the grid shows, as kept in the URL: `page` is 1-based there, and `sort` is spelled as the API spells it. */
11		-interface OwnerListQuery {
12		- lastName: string;
13		- page: number;
14		- size: number;
15		- sort: string;
16		-}
	9	+/** What the grid shows, as kept in the URL: the API's query, except that `page` is 1-based there. */
	10	+type OwnerListQuery = Required<OwnerQuery>;
	11	+type SortColumn = 'name' \| 'city';
17	12
18	13	const DEFAULTS: OwnerListQuery = {lastName: '', page: 1, size: 10, sort: 'name,asc'};
19	14	const PAGE_SIZES = [5, 10, 20];

owner-list.component.ts: diff shown under Find Owner with an unchanged name did not search again.

Fix: OwnerQuery comes from api-types.ts; the component uses Required<OwnerQuery>.

fixed/simplify Error fallback that is never returned on GitHub ↗ in VS Code

Reviewer: handlerError always rethrows, so {} as OwnerPage suggested failures became an empty page.

owner.service.ts+1 −1

		export class OwnerService {
37	33	}
38	34	return this.http
39	35	.get<OwnerPage>(this.entityUrl, {params})
40		- .pipe(catchError(this.handlerError('getOwnersPage', {} as OwnerPage)));
	36	+ .pipe(catchError(this.handlerError<OwnerPage>('getOwnersPage')));
41	37	}
42	38
43	39	getOwnerById(ownerId: number): Observable<Owner> {

Fix: only the type argument is kept.

fixed/simplify Batch fetching added one association at a time on GitHub ↗ in VS Code

Reviewer: @BatchSize fixed the N+1 only on the two collections the grid walks; Vet.specialties kept its own.

application.properties+2 −0

		spring.jpa.show-sql=true
11	11	# call a `select ... from owners` came from; the sequence diagrams label their DB arrows
12	12	# with it and keep the SQL itself behind a click.
13	13	spring.jpa.properties.hibernate.use_sql_comments=true
	14	+# Lazy collections load in batches (one query per page of owners, not one per row)
	15	+spring.jpa.properties.hibernate.default_batch_fetch_size=100
14	16
15	17	# Flyway
16	18	spring.flyway.enabled=true

Owner.java+0 −1

		public class Owner {
55	53	private String telephone;
56	54
57	55	@OneToMany(cascade = CascadeType.ALL, mappedBy = "owner", fetch = FetchType.LAZY)
58		- @BatchSize(size = 100) // a page of owners loads its pets (and their visits) in one query, not one per row
59	56	private Set<Pet> pets = new HashSet<>();
60	57
61	58	public List<Pet> getPets() {

Pet.java+0 −1

		public class Pet {
50	48	private Owner owner;
51	49
52	50	@OneToMany(cascade = CascadeType.ALL, mappedBy = "pet", fetch = FetchType.LAZY)
53		- @BatchSize(size = 100)
54	51	private Set<Visit> visits = new HashSet<>();
55	52
56	53	public List<Visit> getVisitsSortedByDate() {

Fix: hibernate.default_batch_fetch_size=100 replaces both annotations.

fixed/simplify Page-to-DTO conversion inlined in the controller on GitHub ↗ in VS Code

Reviewer: every other entity↔DTO conversion lives in a mapper; this one was five accessor calls in listOwners.

OwnerMapper.java+5 −0

		public class OwnerMapper {
27	29	.setPets(petMapper.toPetsDto(owner.getPets()));
28	30	}
29	31
	32	+ public OwnerPageDto toOwnerPageDto(Page<Owner> owners) {
	33	+ return new OwnerPageDto(toOwnerDtoCollection(owners.getContent()),
	34	+ owners.getTotalElements(), owners.getTotalPages(), owners.getNumber(), owners.getSize());
	35	+ }
	36	+
30	37	public Owner toOwner(OwnerFieldsDto ownerDto) {
31	38	Owner owner = new Owner();
32	39	owner.setFirstName(ownerDto.getFirstName());

OwnerRestController.java: diff shown under Bad page input answered 500 instead of 400.

Fix: OwnerMapper.toOwnerPageDto.

fixed/simplify Private route stub duplicating ActivatedRouteStub on GitHub ↗ in VS Code

Reviewer: the spec carried its own BehaviorSubject stub beside the shared one 15 specs use.

router-stubs.ts+8 −0

		export class ActivatedRouteStub {
49	49	this.subject.next(params);
50	50	}
51	51
	52	+ // ActivatedRoute.queryParamMap is Observable too
	53	+ private querySubject = new BehaviorSubject(convertToParamMap({}));
	54	+ queryParamMap = this.querySubject.asObservable();
	55	+
	56	+ setQueryParams(params: Params) {
	57	+ this.querySubject.next(convertToParamMap(params));
	58	+ }
	59	+
52	60	// ActivatedRoute.snapshot.params
53	61	get snapshot() {
54	62	this.testParams = {id: 1};

Fix: the shared stub gained queryParamMap and setQueryParams.

owner-list.component.spec.ts:36-38

+36const aPage = (content: Owner[], totalElements = content.length,
+37                totalPages = Math.ceil(totalElements / 10)): OwnerPage =>
+38  ({content, totalElements, totalPages, number: 0, size: 10});

fixed/simplify Add-visit glue walked owner pages to find a pet on GitHub ↗ in VS Code

Reviewer: the loop paged through owners because leftover pet-less "Ada Acceptance" owners sort first, one more round trip per hundred leftovers.

add-visit.dsl.ts+8 −13


1	1	import {expect, Page} from '@playwright/test';
2		-import axios from 'axios';
	2	+import {ApiClient} from './support/api-client';
3	3
4	4	// The sentences of add-visit.spec.ts, as plain functions: named for what the
5	5	// reader of a scenario wants to see, not for the widget being clicked. The
6	6	// selectors live here so the spec never mentions one.
7	7
8		-const API_BASE = process.env.API_BASE_URL \|\| 'http://localhost:8080/api';
9		-
10	8	export interface OwnerWithPet {
11	9	ownerId: number;
12	10	petId: number;
13	11	}
14	12
15		-// Walks the pages: the pet-less owners other runs leave behind ("Ada Acceptance…") sort first by name.
	13	+// The seed's owner 1 (Kevin McCallister) has a pet, so the list needs no searching.
	14	+const SEEDED_OWNER_WITH_PET = 1;
	15	+
16	16	export async function an_owner_with_at_least_one_pet_exists(): Promise<OwnerWithPet> {
17		- for (let page = 0; ; page++) {
18		- const {data} = await axios.get(`${API_BASE}/owners?size=100&page=${page}`, {timeout: 10_000});
19		- const ownerWithPet = data.content.find((o: any) => Array.isArray(o.pets) && o.pets.length > 0);
20		- if (ownerWithPet) {
21		- return {ownerId: ownerWithPet.id, petId: ownerWithPet.pets[0].id};
22		- }
23		- if (page + 1 >= data.totalPages) {
24		- throw new Error('No owner with a pet found in the system; cannot run add-visit scenario');
25		- }
	17	+ const owner = await new ApiClient().fetchOwner(SEEDED_OWNER_WITH_PET);
	18	+ if (owner.pets.length === 0) {
	19	+ throw new Error(`Owner ${SEEDED_OWNER_WITH_PET} has no pet — did db/seed/R__seed.sql change?`);
26	20	}
	21	+ return {ownerId: owner.id, petId: owner.pets[0].id};
27	22	}
28	23
29	24	export async function open_owner_detail_page(page: Page, ownerId: number): Promise<void> {

api-client.ts+10 −0

		export class ApiClient {
28	40	return response.data;
29	41	}
30	42
	43	+ async fetchOwnersPage(query: string): Promise<OwnerPage> {
	44	+ const response = await this.client.get<OwnerPage>(`/owners?${query}`);
	45	+ return response.data;
	46	+ }
	47	+
	48	+ async fetchOwner(ownerId: number): Promise<OwnerSummary> {
	49	+ const response = await this.client.get<OwnerSummary>(`/owners/${ownerId}`);
	50	+ return response.data;
	51	+ }
	52	+
31	53	static sortedByDate<T extends {date: string}>(rows: T[]): T[] {
32	54	return [...rows].sort((a, b) => a.date.localeCompare(b.date));
33	55	}

Fix: one GET of seed owner 1, through ApiClient.

fixed/simplify Owner-search glue repeated steps, locators and calls on GitHub ↗ in VS Code

Reviewer: two steps differed by one word, the cell locator and poll lived in three places, and the Background asked for the Potters twice, sequentially, on localhost.

owner-search.feature.glue.ts+16 −17

		import {PlaywrightWorld} from './support/world';
11	11	// Nothing below decides anything: the Background states the data, the Examples
12	12	// table states the search term and the expected result set.
13	13
14		-const API_BASE = process.env.API_BASE_URL \|\| 'http://localhost:8080/api';
	14	+const api = new ApiClient();
15	15
16	16	const fullName = (o: {firstName: string; lastName: string}) => `${o.firstName} ${o.lastName}`;
17	17	const namesIn = (cell: string) => cell.split(',').map((n) => n.trim()).filter(Boolean);
18	18
	19	+const listedNames = async (world: PlaywrightWorld) =>
	20	+ (await world.page.locator('#ownersTable td.ownerFullName').allTextContents()).map((t) => t.trim()).filter(Boolean);
	21	+
19	22	/** Polls until the table has settled on exactly `expected` — order-insensitive. */
20	23	async function expectOwnersListed(world: PlaywrightWorld, expected: string[]): Promise<void> {
21		- const cells = world.page.locator('#ownersTable td.ownerFullName');
22		- const listed = async () => (await cells.allTextContents()).map((t) => t.trim()).filter(Boolean).sort();
23		-
24		- await expect.poll(listed, {timeout: 10_000}).toEqual([...expected].sort());
	24	+ await expect.poll(async () => (await listedNames(world)).sort(), {timeout: 10_000}).toEqual([...expected].sort());
25	25	}
26	26
27	27	/** Polls until the table shows exactly `expected`, in that order. */
28	28	async function expectOwnersListedInOrder(world: PlaywrightWorld, expected: string[]): Promise<void> {
29		- const cells = world.page.locator('#ownersTable td.ownerFullName');
30		- await expect.poll(async () => (await cells.allTextContents()).map((t) => t.trim()), {timeout: 10_000})
31		- .toEqual(expected);
	29	+ await expect.poll(() => listedNames(world), {timeout: 10_000}).toEqual(expected);
32	30	}
33	31
34	32	/** The full names the API lists first for this query — what the grid must show, in that order. */
35	33	async function firstPageFromApi(query: string): Promise<string[]> {
36		- const {data} = await axios.get(`${API_BASE}/owners?${query}`, {timeout: 10_000});
37		- return data.content.map(fullName);
	34	+ return (await api.fetchOwnersPage(query)).content.map(fullName);
38	35	}
39	36
40	37	/**
		async function firstPageFromApi(query: string): Promise<string[]> {
43	40	* instead of looking like a broken search.
44	41	*/
45	42	Given('the clinic has these owners', async function (this: PlaywrightWorld, owners: DataTable) {
46		- for (const [name] of owners.raw()) {
47		- const lastName = name.trim().split(' ').pop();
48		- const {data} = await axios.get(`${API_BASE}/owners?lastName=${lastName}&size=100`, {timeout: 10_000});
49		- expect(data.content.map(fullName), 'is the backend up and the DB seeded by Flyway?').toContain(name.trim());
50		- }
51		- const {data} = await axios.get(`${API_BASE}/owners?size=1`, {timeout: 10_000});
52		- this.ownerCount = data.totalElements;
	43	+ const names = owners.raw().map(([name]) => name.trim());
	44	+ const lastNames = [...new Set(names.map((name) => name.split(' ').pop()))];
	45	+ const [all, ...matches] = await Promise.all([
	46	+ api.fetchOwnersPage('size=1'),
	47	+ ...lastNames.map((lastName) => api.fetchOwnersPage(`lastName=${lastName}&size=100`)),
	48	+ ]);
	49	+ const found = matches.flatMap((page) => page.content.map(fullName));
	50	+ expect(found, 'is the backend up and the DB seeded by Flyway?').toEqual(expect.arrayContaining(names));
	51	+ this.ownerCount = all.totalElements;
53	52	});
54	53
55	54	When('I open the owners page', async function (this: PlaywrightWorld) {

owner-search.feature.glue.ts+3 −7

		When('I choose {int} rows per page', async function (this: PlaywrightWorld, size
68	67	});
69	68
70	69	When('I sort the owners by {string}', async function (this: PlaywrightWorld, column: string) {
71		- await this.page.locator(`#ownersTable th:has-text("${column}")`).click();
	70	+ await this.page.locator(`#ownersTable th:has-text("${column}") button`).click();
72	71	});
73	72
74	73	Then('exactly these owners are listed: {string}', async function (this: PlaywrightWorld, owners: string) {
75	74	await expectOwnersListed(this, namesIn(owners));
76	75	});
77	76
78		-Then('the first 10 owners by name are listed', async function (this: PlaywrightWorld) {
79		- await expectOwnersListedInOrder(this, await firstPageFromApi('sort=name,asc&size=10'));
80		-});
81		-
82		-Then('the first 10 owners by city are listed', async function (this: PlaywrightWorld) {
83		- await expectOwnersListedInOrder(this, await firstPageFromApi('sort=city,asc&size=10'));
	77	+Then('the first 10 owners by {word} are listed', async function (this: PlaywrightWorld, sortKey: string) {
	78	+ await expectOwnersListedInOrder(this, await firstPageFromApi(`sort=${sortKey},asc&size=10`));
84	79	});
85	80
86	81	Then('{int} owners are listed', async function (this: PlaywrightWorld, count: number) {

api-client.ts: diff shown under Add-visit glue walked owner pages to find a pet.

Fix: one {word} step, a listedNames helper, deduped lookups in Promise.all through ApiClient.

fixedpre-push hook New owner-creation line over the 119-character limit on GitHub ↗ in VS Code
Hook: scripts/check-line-length.py blocked the push on a 122-character axios.post line.
visit-date-range.feature.glue.ts: diff shown under Visit-date scenario still read the owner list as an array.
Fix: the request body is wrapped one field group per line.
fixedpre-push hook Dropped @ResponseStatus erased the 400 from the API contract on GitHub ↗ in VS Code
Hook: the badRequest extraction removed @ResponseStatus(BAD_REQUEST); springdoc then dropped the 400 response from every operation in openapi.yaml.
ExceptionControllerAdvice.java: diff shown under Bad page input answered 500 instead of 400.
Fix: restored on the two validation handlers; openapi.yaml back to its committed state.

fixed/code-review Accented names sorted after Z under CI's C collation on GitHub ↗ in VS Code

Reviewer: zonky inherits the runner's locale; under C.UTF-8 'Łukasz' sorts after 'Mister' and accentedNames_sortAlphabetically failed CI.

application.properties+5 −0


	1	+# Loaded beside the main application.properties (classpath:/config/ is read in addition, not instead).
	2	+# The embedded test database sorts like a person would: ICU English, whatever locale the machine
	3	+# runs under - CI's C.UTF-8 put 'Lukasz' with a stroke after 'Mister'.
	4	+zonky.test.database.postgres.initdb.properties.locale-provider=icu
	5	+zonky.test.database.postgres.initdb.properties.icu-locale=en

pom.xml+9 −0


32	32	<type>pom</type>
33	33	<scope>import</scope>
34	34	</dependency>
	35	+ <!-- Postgres 16 for the embedded test database on every platform (embedded-postgres
	36	+ defaults to 14, which cannot make ICU the database's default collation) -->
	37	+ <dependency>
	38	+ <groupId>io.zonky.test.postgres</groupId>
	39	+ <artifactId>embedded-postgres-binaries-bom</artifactId>
	40	+ <version>16.2.0</version>
	41	+ <type>pom</type>
	42	+ <scope>import</scope>
	43	+ </dependency>
35	44	</dependencies>
36	45	</dependencyManagement>
37	46

Fix: Postgres 16 binaries on every platform and an ICU English default collation for the test database.

fixedCI (SonarCloud Web:MouseEventWithoutKeyboardEquivalentCheck) Sort headers reachable only with a mouse on GitHub ↗ in VS Code
CI: (click) on a <th> has no keyboard equivalent, so keyboard users could not sort; it failed the quality gate.
owner-list.component.html: diff shown under Add Owner vanished when a search matched nobody.
owner-search.feature.glue.ts: diff shown under Owner-search glue repeated steps, locators and calls.
Fix: each sortable header holds a plain-styled <button>, focusable and Enter/Space-activated natively.

fixedCI (SonarCloud typescript:S9383) Navigation promise left unhandled on GitHub ↗ in VS Code

CI: router.navigate returns a promise nobody handled; a failed navigation was swallowed silently.

owner-list.component.ts+2 −1

		export class OwnerListComponent implements OnInit, OnDestroy {
92	107
93	108	private navigate(change: Partial<OwnerListQuery>, replaceUrl = false) {
94	109	const queryParams = toUrl({...this.query, ...change});
95		- this.router.navigate([], {relativeTo: this.route, queryParams, replaceUrl});
	110	+ this.router.navigate([], {relativeTo: this.route, queryParams, replaceUrl})
	111	+ .catch((error) => this.errorMessage = String(error));
96	112	}
97	113	}
98	114

Fix: a rejection now shows as the grid's error message.

fixedCI (SonarCloud typescript:S2933) Injected and internal members not readonly on GitHub ↗ in VS Code
CI: the router, route, service and reload subject are never reassigned.
owner-list.component.ts: diff shown under Find Owner with an unchanged name did not search again.
Fix: marked readonly.

Other changes in the fix commits: 23 hunks in 11 files

design.md+2 −2

		end and confirmed as written before implementation.
141	141
142	142	- [The sort collation differs between dev, CI and prod] The accented-name scenario passes
143	143	only under a linguistic collation, and zonky's `initdb` follows the machine locale.
144		- → The scenario runs in CI. If CI collates `C`, pin zonky's locale in the shared test
145		- config rather than weakening the scenario.
	144	+ → Done: CI collated `C`, so the test database is pinned to ICU English
	145	+ (`petclinic-backend/src/test/resources/config/application.properties`), not the scenario weakened.
146	146	- *[`count()` on every page request]** At 100k rows, a filtered or unfiltered count is in the low
147	147	milliseconds. → Accept it, because the total is what the paginator shows. Revisit at millions of rows.
148	148	- [Deep offsets get slower] `OFFSET 99990` still walks 99,990 index entries. → It stays acceptable at

Owner.java+0 −2

		import org.springframework.beans.support.MutableSortDefinition;
11	11	import org.springframework.beans.support.PropertyComparator;
12	12	import org.springframework.core.style.ToStringCreator;
13	13
14		-import org.hibernate.annotations.BatchSize;
15		-
16	14	import jakarta.persistence.CascadeType;
17	15	import jakarta.persistence.Entity;
18	16	import jakarta.persistence.FetchType;

Pet.java+0 −2

		import java.util.Set;
10	10	import org.springframework.beans.support.MutableSortDefinition;
11	11	import org.springframework.beans.support.PropertyComparator;
12	12
13		-import org.hibernate.annotations.BatchSize;
14		-
15	13	import jakarta.persistence.CascadeType;
16	14	import jakarta.persistence.Column;
17	15	import jakarta.persistence.Entity;

OwnerMapper.java+2 −0


1	1	package victor.training.petclinic.mapper;
2	2
	3	+import org.springframework.data.domain.Page;
3	4	import org.springframework.stereotype.Component;
4	5	import victor.training.petclinic.domain.Owner;
5	6	import victor.training.petclinic.rest.dto.OwnerDto;
6	7	import victor.training.petclinic.rest.dto.OwnerFieldsDto;
	8	+import victor.training.petclinic.rest.dto.OwnerPageDto;
7	9
8	10	import java.util.ArrayList;
9	11	import java.util.List;

ExceptionControllerAdvice.java+2 −1

		import jakarta.validation.ValidationException;
8	8	import org.springframework.http.HttpStatus;
9	9	import org.springframework.http.ProblemDetail;
10	10	import org.springframework.http.ResponseEntity;
11		-import org.springframework.validation.BindingResult;
12	11	import org.springframework.web.bind.MethodArgumentNotValidException;
13	12	import org.springframework.web.bind.annotation.ExceptionHandler;
14	13	import org.springframework.web.bind.annotation.ResponseStatus;
15	14	import org.springframework.web.bind.annotation.RestControllerAdvice;
	15	+import org.springframework.web.method.annotation.MethodArgumentTypeMismatchException;
16	16
17	17	import java.time.Instant;
18	18	import java.util.List;
		import static org.springframework.http.HttpStatus.NOT_FOUND;
34	34	@RestControllerAdvice(basePackages = "victor.training.petclinic.rest")
35	35	public class ExceptionControllerAdvice {
36	36	private static final Logger log = LoggerFactory.getLogger(ExceptionControllerAdvice.class);
	37	+ private static final String SEE_ERRORS = "Validation failed for request. See 'errors' for details.";
37	38
38	39	private ProblemDetail buildProblemDetail(String title, String detail, HttpStatus status,
39	40	HttpServletRequest request) {

owner-list.component.spec.ts+13 −22


1	1	import {ComponentFixture, TestBed, waitForAsync} from '@angular/core/testing';
2	2	import {By} from '@angular/platform-browser';
3	3	import {NO_ERRORS_SCHEMA} from '@angular/core';
4		-import {ActivatedRoute, convertToParamMap, Params, Router} from '@angular/router';
	4	+import {ActivatedRoute, Router} from '@angular/router';
5	5	import {RouterTestingModule} from '@angular/router/testing';
6	6	import {CommonModule} from '@angular/common';
7	7	import {FormsModule} from '@angular/forms';
8	8	import {NoopAnimationsModule} from '@angular/platform-browser/animations';
9		-import {BehaviorSubject, Observable, of, Subject, throwError} from 'rxjs';
	9	+import {Observable, of, Subject, throwError} from 'rxjs';
10	10
11	11	import {OwnerListComponent} from './owner-list.component';
12	12	import {OwnerQuery, OwnerService} from '../owner.service';
13	13	import {Owner} from '../owner';
14	14	import {OwnerPage} from '../owner-page';
15	15	import {OwnersModule} from '../owners.module';
	16	+import {ActivatedRouteStub} from '../../testing/router-stubs';
16	17	import Spy = jasmine.Spy;
17	18
18	19	class OwnerServiceStub {
		class OwnerServiceStub {
21	22	}
22	23	}
23	24
24		-/** The URL's query string, as the component reads it. */
25		-class QueryParamsStub {
26		- private subject = new BehaviorSubject(convertToParamMap({}));
27		- queryParamMap = this.subject.asObservable();
28		-
29		- set(params: Params) {
30		- this.subject.next(convertToParamMap(params));
31		- }
32		-}
33		-
34	25	describe('OwnerListComponent', () => {
35	26	let component: OwnerListComponent;
36	27	let fixture: ComponentFixture<OwnerListComponent>;
37	28	let getOwnersPage: Spy;
38	29	let navigate: Spy;
39		- let url: QueryParamsStub;
	30	+ let route: ActivatedRouteStub;
40	31
41	32	const george: Owner = {
42	33	id: 1, firstName: 'George', lastName: 'Franklin', address: '110 W. Liberty St.',
		describe('OwnerListComponent', () => {
52	43	imports: [CommonModule, FormsModule, NoopAnimationsModule, OwnersModule, RouterTestingModule],
53	44	providers: [
54	45	{provide: OwnerService, useClass: OwnerServiceStub},
55		- {provide: ActivatedRoute, useClass: QueryParamsStub}
	46	+ {provide: ActivatedRoute, useClass: ActivatedRouteStub}
56	47	]
57	48	}).compileComponents();
58	49	}));
		describe('OwnerListComponent', () => {
60	51	beforeEach(() => {
61	52	fixture = TestBed.createComponent(OwnerListComponent);
62	53	component = fixture.componentInstance;
63		- url = TestBed.inject(ActivatedRoute) as unknown as QueryParamsStub;
	54	+ route = TestBed.inject(ActivatedRoute) as unknown as ActivatedRouteStub;
64	55	getOwnersPage = spyOn(TestBed.inject(OwnerService), 'getOwnersPage').and.returnValue(of(aPage([george])));
65	56	navigate = spyOn(TestBed.inject(Router), 'navigate').and.returnValue(Promise.resolve(true));
66	57	});
		describe('OwnerListComponent', () => {
75	66	});
76	67
77	68	it('asks for what the URL says, with its 1-based page turned 0-based', () => {
78		- url.set({lastName: 'Pot', page: '3', size: '5', sort: 'city,desc'});
	69	+ route.setQueryParams({lastName: 'Pot', page: '3', size: '5', sort: 'city,desc'});
79	70	fixture.detectChanges();
80	71
81	72	expect(getOwnersPage).toHaveBeenCalledWith({lastName: 'Pot', page: 2, size: 5, sort: 'city,desc'});
		describe('OwnerListComponent', () => {
83	74	});
84	75
85	76	it('falls back to the defaults for values the URL gets wrong', () => {
86		- url.set({page: '-2', size: '7', sort: 'telephone,asc'});
	77	+ route.setQueryParams({page: '-2', size: '7', sort: 'telephone,asc'});
87	78	fixture.detectChanges();
88	79
89	80	expect(getOwnersPage).toHaveBeenCalledWith({lastName: '', page: 0, size: 10, sort: 'name,asc'});
		describe('OwnerListComponent', () => {
96	87	});
97	88
98	89	it('a search goes back to the first page, keeping the sort and size', () => {
99		- url.set({page: '3', size: '5', sort: 'city,asc'});
	90	+ route.setQueryParams({page: '3', size: '5', sort: 'city,asc'});
100	91	fixture.detectChanges();
101	92
102	93	component.lastName = 'Pot';
		describe('OwnerListComponent', () => {
106	97	});
107	98
108	99	it('moving to another page keeps the rest of the query', () => {
109		- url.set({lastName: 'Pot'});
	100	+ route.setQueryParams({lastName: 'Pot'});
110	101	fixture.detectChanges();
111	102
112	103	component.onPage({pageIndex: 2, pageSize: 10, length: 26});
		describe('OwnerListComponent', () => {
115	106	});
116	107
117	108	it('a new page size goes back to the first page', () => {
118		- url.set({page: '3'});
	109	+ route.setQueryParams({page: '3'});
119	110	fixture.detectChanges();
120	111
121	112	component.onPage({pageIndex: 1, pageSize: 5, length: 26});
		describe('OwnerListComponent', () => {
168	190
169	191	it('moves to the last page when the URL points past it', () => {
170	192	getOwnersPage.and.returnValue(of(aPage([], 26, 3)));
171		- url.set({page: '9'});
	193	+ route.setQueryParams({page: '9'});
172	194	fixture.detectChanges();
173	195
174	196	expect(navigatedTo()).toEqual({page: 3});
		describe('OwnerListComponent', () => {
182	204	fixture.detectChanges();
183	205
184	206	getOwnersPage.and.returnValue(of(aPage([george])));
185		- url.set({lastName: 'Franklin'});
	207	+ route.setQueryParams({lastName: 'Franklin'});
186	208	slowAnswer.next(aPage([{...george, id: 2, lastName: 'Davis'}]));
187	209
188	210	expect(component.page?.content).toEqual([george]);

owners.module.ts+1 −3

		import {OwnerEditComponent} from './owner-edit/owner-edit.component';
9	9	import {OwnersRoutingModule} from './owners-routing.module';
10	10	import {PetsModule} from '../pets/pets.module';
11	11	import {MatPaginatorModule} from '@angular/material/paginator';
12		-import {MatSortModule} from '@angular/material/sort';
13	12
14	13	@NgModule({
15	14	imports: [
		import {MatSortModule} from '@angular/material/sort';
17	16	FormsModule,
18	17	OwnersRoutingModule,
19	18	PetsModule,
20		- MatPaginatorModule,
21		- MatSortModule
	19	+ MatPaginatorModule
22	20	],
23	21	declarations: [
24	22	OwnerListComponent,

router-stubs.ts+1 −1


2	2	export {ActivatedRoute, Router, RouterLink, RouterOutlet} from '@angular/router';
3	3
4	4	import {Component, Directive, HostListener, Injectable, Input} from '@angular/core';
5		-import {NavigationExtras} from '@angular/router';
	5	+import {convertToParamMap, NavigationExtras, Params} from '@angular/router';
6	6	// Only implements params and part of snapshot.params
7	7	import {BehaviorSubject} from 'rxjs';
8	8

owner-search.feature.glue.ts+1 −1


1	1	import {DataTable, Given, When, Then} from '@cucumber/cucumber';
2	2	import {expect} from '@playwright/test';
3		-import axios from 'axios';
	3	+import {ApiClient} from './support/api-client';
4	4	import {PlaywrightWorld} from './support/world';
5	5
6	6	// Gherkin, bound directly: the steps do the work themselves, with no DSL layer

api-client.ts+12 −0

		export interface VisitDto {
11	11	ownerLastName?: string;
12	12	}
13	13
	14	+export interface OwnerSummary {
	15	+ id: number;
	16	+ firstName: string;
	17	+ lastName: string;
	18	+ pets: {id: number}[];
	19	+}
	20	+
	21	+export interface OwnerPage {
	22	+ content: OwnerSummary[];
	23	+ totalElements: number;
	24	+}
	25	+
14	26	export class ApiClient {
15	27	private client: AxiosInstance;
16	28

ListGetFirstTest.java+0 −1

		class ListGetFirstTest implements RewriteTest {
46	46	import java.util.List;
47	47	class Owner { List<String> getPets() { return List.of(); } }
48	48	class A {
49		- String firstPet(Owner owner) {
50	49	return owner.getPets().get(0);
51	50	}
52	51	}

8 generated files re-recorded in the fix commits (0b99e29c..d01c3776) — regenerated output, not a fix, so not drawn.

Demo

Running appchecking…

DB Fixture:Defaultgreen

Intro video

👩 🐘 🌍

0:04The owners grid is now paged on the server: ten rows, and a total.
0:09Five rows per page, and the choice is kept in the URL.
0:14Name and City are sortable; click City to sort ascending.
0:19Click again for descending; the arrowhead shows the direction.
0:23Next page, still sorted by city.
0:28Back from an owner returns to the same page and sort.
0:33Searching starts again from page one.
0:37When nobody matches, a message and its own Add Owner button.

API

Breaking change · 1 endpoint broken · checked by oasdiff (report ↗)

Data

Domain ModelunchangedDomainModel.puml

DatabaseunchangedDB.puml

Also changed, not drawn: indexes added on owners (city, first_name, last_name, id), owners (last_name text_pattern_ops), owners (first_name, last_name, id).

Conceptual ModelunchangedConceptualModel.drawio.png

Tests

Issue #25: Add pagination to Owners grid

victorrenteaon May 13, 2026 Semantic coverage

The grid should be sortable by any column
The grid should be paginated in pages of 5, 10, or 20 rows per page

Requirements of the OpenSpec change paginate-owners-grid

Owners are listed one page at a time — GET /api/owners SHALL return a single page of owners as {content, totalElements, totalPages, number, size}, where number is zero-based. Without paging parameters it SHALL return page 0 of size 10, sorted by name ascending. Each owner in content keeps its current shape, pets included.
Page size is bounded — The API SHALL accept a size from 1 to 100 and SHALL reject any other value, and any negative page, with 400 and a message naming the parameter. It SHALL NOT silently adjust the value.
Owners sort by name or by city only — The API SHALL accept sort as name or city, optionally followed by ,asc or ,desc (default asc). name orders by first name, then last name; city orders by city, then first name, then last name. Any other value SHALL be rejected with 400.
Paging is stable across ties — Every sort order SHALL end with the owner id, so that walking all pages of one query returns each matching owner exactly once, even when owners share every sorted field.
Last-name filter applies before paging — The lastName parameter SHALL keep its current meaning, a case-sensitive prefix of the last name, and totalElements SHALL count only the owners that match it.
The Owners grid pages through owners — The Owners grid SHALL show one page at a time, offer 5, 10 and 20 rows per page (default 10), and show the total number of matching owners with controls to move between pages.
The Owners grid sorts by Name and City headers — The Name and City column headers SHALL be clickable to sort ascending, then descending. The Address, Telephone and Pets headers SHALL NOT be sortable.
Changing the query returns to the first page — Searching by last name, changing the page size, or changing the sort SHALL show the first page of the new result.
The grid's position survives navigation — The current page, page size, sort and last-name filter SHALL be kept in the page URL, so that a browser refresh, or returning with Back from an owner's page, shows the same results. Parameters equal to their defaults SHALL be left out of the URL.
Empty results are told apart from failures — The grid SHALL show "No owners with last name starting with …" only when the request succeeded and matched no owner. A failed request SHALL NOT show that message.

fully coveredpartiallyexecutedmissingN/A

+42 −12 ✍️5

Sequence

Sequence diagrams of tests

These diagrams were captured from OpenTelemetry traces of 7 tests.

The tests ran against the real app, with OpenTelemetry tracing switched on.
Each HTTP call and database query was recorded as a span: who called whom, and for how long. The spans that one action set off form a trace.
Each test's traces were drawn as its diagram below.

The trace of OwnerListTest: unfilteredTotal_countsEveryOwner(), in Grafana Tempo. Compare it with that test's diagram below. Recorded while the e2e tests ran, 100% sampled: every request is in it.

A trace in Grafana Tempo: OwnerListTest: unfilteredTotal_countsEveryOwner()

API@AddVisitApiTest: adds a visit to an existing petAddVisitApiTest.java

.puml

API+OwnerListTest: defaultPage_isTheFirstTenByName()OwnerListTest.java

.puml

API+OwnerListTest: unfilteredTotal_countsEveryOwner()OwnerListTest.java

.puml

E2E@Add a visit to an existing pet from the owner detail pageadd-visit.spec.ts

.puml

E2E+Choosing 5 rows per pageowner-search.feature

.puml

E2E@Searching with an empty last name shows the first page of every ownerowner-search.feature

.puml

E2E+Sorting by cityowner-search.feature

.puml

Structure

Structure diagrams

Java packagesunchangedpackages.puml

Maven modulesunchangedMavenModules.puml

C2-ContainersunchangedC2-Containers.new.puml

Op counts compare only the 2 tests traced on both sides.

Deployment

✏️Edit on desktop↗✏️Edit on web↗


Unit-tested against the traced sequence diagrams.

walked by a testno test walks itcalled in the traces, missing from the drawing

C2-Containers (Structurizr)Containers inside PetClinicunchangedc4model.c1+c2.dsl

Hand-maintained: C3ArchTest.java parses this workspace but checks only its components; nothing on this view is compared with the code.

C2-BackendOutbound (Structurizr)Backend and what it callsunchangedc4model.c1+c2.dsl

C2-BackendOutbound — drawn by Structurizr

Hand-maintained: C3ArchTest.java parses this workspace but checks only its components; nothing on this view is compared with the code.

C3-Components-All (Structurizr)All components inside Backendunchangedc4model.c1+c2.dsl

C3-Components-All — drawn by Structurizr

Its components and their arrows are checked against the code by C3ArchTest.java.

C3-Repository (Structurizr)Repository Layer — nearest neighboursunchangedc4model.c1+c2.dsl

Its components and their arrows are checked against the code by C3ArchTest.java.

C3-Mapper (Structurizr)Mapper Layer — nearest neighboursunchangedc4model.c1+c2.dsl

Its components and their arrows are checked against the code by C3ArchTest.java.

C1-Context (Structurizr)Who uses PetClinicunchangedc4model.c1+c2.dsl

Hand-maintained: C3ArchTest.java parses this workspace but checks only its components; nothing on this view is compared with the code.

Code City

Impact on code size, complexity, coupling, …

UX design system

19 of 19 screens changed · ⚠ +1 gap

⚠️ Owners (/owners) · +1 gap

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

✗ new Angular Material paginator — the design system has none

1 changed — nothing here to judge2 changed — nothing here to judge3 ✗ mat-paginator — added

	side	element	role	why	delta	churn
3gap	Devoxx26	Items per page: 10 1 – 10 of 26 `div#ownersTable>div.owners-footer:1>mat-paginator.mat-mdc-paginator:1`	paginator	not from the design system — `<mat-paginator>` is an Angular Material paginator, and the design system has no component for a `paginator`; its “Items per page” control is a `<mat-select>`, not combo brought in by this branch, from outside the design system	added	—
	why An Angular Material paginator (`<mat-paginator>`) is a control from outside the design system, which has no component for a `paginator`: either the design system gets one, or the team agrees this library is allowed here — otherwise every screen picks its own. owner-list.component.html:53as rendered `<mat-paginator role="group" showfirstlastbuttons="" class="mat-mdc-paginator"> <div class="mat-mdc-paginator-outer-container"> <div class="mat-mdc-paginator-container"> <!-- 2 more <div> --> </div> </div> </mat-paginator>`

1 control considered and deliberately not judged

Last name #lastName — role input[type=text], not covered

✅ Add A Pet (/owners/8/pets/add)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

✓ combo3

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	why	delta	churn
3ok	Devoxx26	Type `app-combo[name="type"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. pet-add.component.html:55as rendered `<app-combo inputid="type" name="type" required data-ds="combo"> <select class="form-control pc-combo__control" id="type"> <option value=""></option> <option value="0">cat</option> <option value="1">dog</option> <option value="2">lizard</option> <!-- 4 more <option> --> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`
3ok	390f0e0e	Type `app-combo[name="type"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. pet-add.component.html:55as rendered `<app-combo inputid="type" name="type" required data-ds="combo"> <select class="form-control pc-combo__control" id="type"> <option value=""></option> <option value="0">cat</option> <option value="1">dog</option> <option value="2">lizard</option> <!-- 4 more <option> --> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`

3 controls considered and deliberately not judged

Owner #owner_name — role input[type=text], not covered
Name #name — role input[type=text], not covered
Birth Date input[name="birthDate"] — role input[type=text], not covered

✅ Edit A Pet (/pets/11/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

✓ combo3

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	why	delta	churn
3ok	Devoxx26	Type `app-combo[name="pettype"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. pet-edit.component.html:50as rendered `<app-combo inputid="type" name="pettype" required data-ds="combo"> <select class="form-control pc-combo__control" id="type"> <option value="0">cat</option> <option value="1">dog</option> <option value="2">lizard</option> <option value="3">snake</option> <!-- 3 more <option> --> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`
3ok	390f0e0e	Type `app-combo[name="pettype"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. pet-edit.component.html:50as rendered `<app-combo inputid="type" name="pettype" required data-ds="combo"> <select class="form-control pc-combo__control" id="type"> <option value="0">cat</option> <option value="1">dog</option> <option value="2">lizard</option> <option value="3">snake</option> <!-- 3 more <option> --> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`

4 controls considered and deliberately not judged

Owner #owner_name — role input[type=text], not covered
Name #name — role input[type=text], not covered
Birth Date input[name="birthDate"] — role input[type=text], not covered
Type #type1 — role input[type=text], not covered

✅ Add A Vet (/vets/add)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

✓ combo3

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	why	delta	churn
3ok	Devoxx26	Type `app-combo[name="specialties"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. vet-add.component.html:34as rendered `<app-combo inputid="specialties" name="specialties" data-ds="combo"> <select class="form-control pc-combo__control" id="specialties"> <option value=""></option> <option value="0">radiology</option> <option value="1">surgery</option> <option value="2">dentistry</option> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`
3ok	390f0e0e	Type `app-combo[name="specialties"]`	design-system component combo	same	0%
	markup and template The design system’s combo component (`<app-combo>`) — the control this role should be. vet-add.component.html:34as rendered `<app-combo inputid="specialties" name="specialties" data-ds="combo"> <select class="form-control pc-combo__control" id="specialties"> <option value=""></option> <option value="0">radiology</option> <option value="1">surgery</option> <option value="2">dentistry</option> </select> <span aria-hidden="true" class="pc-combo__chevron"></span> </app-combo>`

2 controls considered and deliberately not judged

First Name #firstName — role input[type=text], not covered
Last Name #lastName — role input[type=text], not covered

✅ Welcome (/welcome)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

✅ Add An Owner (/owners/add)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

5 controls considered and deliberately not judged

First Name #firstName — role input[type=text], not covered
Last Name #lastName — role input[type=text], not covered
Address #address — role input[type=text], not covered
City #city — role input[type=text], not covered
Telephone #telephone — role input[type=text], not covered

✅ Owner Details (/owners/8)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

✅ Edit An Owner (/owners/8/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

5 controls considered and deliberately not judged

First Name #firstName — role input[type=text], not covered
Last Name #lastName — role input[type=text], not covered
Address #address — role input[type=text], not covered
City #city — role input[type=text], not covered
Telephone #telephone — role input[type=text], not covered

✅ Pets (/pets)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

✅ Book A Visit (/pets/11/visits/add)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

2 controls considered and deliberately not judged

Date input[name="date"] — role input[type=text], not covered
Description #description — role input[type=text], not covered

✅ Visits (/visits)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

✅ Edit A Visit (/visits/1/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

2 controls considered and deliberately not judged

Date input[name="date"] — role input[type=text], not covered
Description #description — role input[type=text], not covered

✅ Pet Types (/pettypes)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

7 controls considered and deliberately not judged

pettype_name #\30 — role input[type=text], not covered
pettype_name #\31 — role input[type=text], not covered
pettype_name #\32 — role input[type=text], not covered
pettype_name #\33 — role input[type=text], not covered
pettype_name #\34 — role input[type=text], not covered
pettype_name #\35 — role input[type=text], not covered
pettype_name #\36 — role input[type=text], not covered

✅ Add A Pet Type (/pettypes/add)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

1 control considered and deliberately not judged

Name #name — role input[type=text], not covered

✅ Edit A Pet Type (/pettypes/1/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

1 control considered and deliberately not judged

Name #name — role input[type=text], not covered

✅ Specialties (/specialties)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

3 controls considered and deliberately not judged

spec_name #\30 — role input[type=text], not covered
spec_name #\31 — role input[type=text], not covered
spec_name #\32 — role input[type=text], not covered

✅ Edit A Specialty (/specialties/1/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

2 controls considered and deliberately not judged

Name #name — role input[type=text], not covered
Description #description — role textarea, not covered

✅ Vets (/vets)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

✅ Edit A Vet (/vets/1/edit)

frame the changes

design-system componentnative or outside control where one belongswhere this branch changed the screen

1 changed — nothing here to judge2 changed — nothing here to judge

	side	element	role	why	delta	churn
	No control on this screen is a design-system component or fills a role one covers — nothing to judge here; what was considered is listed below.

3 controls considered and deliberately not judged

First Name #firstName — role input[type=text], not covered
Last Name #lastName — role input[type=text], not covered
Specialties #spec — role select[multiple], not covered

Complexity

Cognitive Complexity per Entry Point

Computed by endpoint-complexity.py with JavaParser and its symbol solver: a syntax tree of the Java sources, every call bound by type.

REST APIs 45addedtotal

GET/api/owners↗+213

OwnerRestController ↗0listOwners()

OwnerMapper ↗0toOwnerPageDto()

OwnerMapper ↗2toOwnerDtoCollection()

if (ownerCollection == null) {+1 for (Owner owner : ownerCollection) {+1

OwnerMapper ↗0toOwnerDto()

PetMapper ↗2toPetsDto()

if (pets == null) {+1 for (Pet pet : pets) {+1

PetMapper ↗1toPetDto()

if (owner != null) {+1

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

PetMapper ↗1toPetTypeDto()

if (petType == null) {+1

OwnerRestController ↗2toSort()+2

Direction direction = keyAndDirection.length > 1 ? Direction.fromString(keyAndDirection[1]) : Direction.ASC;+1 if (keyAndDirection[0].equals("city")) {+1

POST/api/users↗11

UserRestController ↗7addUser()

if (user.getRoles() == null || user.getRoles().isEmpty()) {+1 if (user.getRoles() == null || user.getRoles().isEmpty()) {+1 for (Role role : user.getRoles()) {+1 if (!role.getName().startsWith("ROLE_")) {+2 if (role.getUser() == null) {+2

UserMapper ↗0toUser()

UserMapper ↗2toRoles()

if (roleDtos == null) {+1 for (RoleDto roleDto : roleDtos) {+1

UserMapper ↗0toUserDto()

UserMapper ↗2toRoleDtos()

if (roles == null) {+1 for (Role role : roles) {+1

GET/assistant↗11

Assistant ↗2assistant()

if (!judgeGuard.isAllowed(message)) {+1 if (!judgeGuard.isReplyAllowed(message, reply)) {+1

JudgeGuard ↗0isAllowed()

JudgeGuard ↗0judge()

JudgeGuard ↗3classify()

if (verdict == null) { // structured parse yielded nothing — don't block on ambiguity+1 if (!verdict.safe()) {+1 } catch (RuntimeException e) {+1

TokenCostMeter ↗4record()

if (response == null || response.getMetadata() == null) {+1 if (response == null || response.getMetadata() == null) {+1 if (price == null || usage == null) {+1 if (price == null || usage == null) {+1

TokenCostMeter ↗1priceFor()

if (model == null) {+1

TokenCostMeter ↗1tokens()

return count == null ? 0 : count;+1

GET/api/owners/{ownerId}↗9

OwnerRestController ↗0getOwner()

OwnerMapper ↗0toOwnerDto()

PetMapper ↗2toPetsDto()

if (pets == null) {+1 for (Pet pet : pets) {+1

PetMapper ↗1toPetDto()

if (owner != null) {+1

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

PetMapper ↗1toPetTypeDto()

if (petType == null) {+1

GET/api/pets↗9

PetRestController ↗0listPets()

PetMapper ↗2toPetsDto()

if (pets == null) {+1 for (Pet pet : pets) {+1

PetMapper ↗1toPetDto()

if (owner != null) {+1

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

PetMapper ↗1toPetTypeDto()

if (petType == null) {+1

POST/api/owners/{ownerId}/pets/{petId}/visits↗8

OwnerRestController ↗0addVisitToOwner()

OwnerRestController ↗0bookVisit()

Pet ↗4requireValidVisitDate()

if (visitDate == null) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (visitDate.isAfter(latest)) {+1

OwnerRestController ↗0notifyOwner()

NotificationServiceClient ↗1visitBooked()

} catch (RestClientException e) {+1

PhoneNumbers ↗2normalize(String,HomeCountry)

if (normalized.startsWith("+")) {+1 String withoutTrunkPrefix = normalized.startsWith("0") ? normalized.substring(1) : normalized;+1

PhoneNumbers ↗1normalize(String)

return digits.startsWith("00") ? "+" + digits.substring(2) : digits;+1

GET/api/owners/{ownerId}/pets/{petId}↗7

OwnerRestController ↗0getOwnersPet()

PetMapper ↗1toPetDto()

if (owner != null) {+1

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

PetMapper ↗1toPetTypeDto()

if (petType == null) {+1

GET/api/pets/{petId}↗7

PetRestController ↗0getPet()

PetMapper ↗1toPetDto()

if (owner != null) {+1

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

PetMapper ↗1toPetTypeDto()

if (petType == null) {+1

GET/api/visits↗5

VisitRestController ↗0listVisits()

VisitMapper ↗2toVisitsDto()

if (visits == null) {+1 for (Visit visit : visits) {+1

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

GET/api/vets↗4

VetRestController ↗0listVets()

VetMapper ↗2toVetDtos()

if (vets == null) {+1 for (Vet vet : vets) {+1

VetMapper ↗0toVetDto()

SpecialtyMapper ↗2toSpecialtyDtos()

if (specialties == null) {+1 for (Specialty specialty : specialties) {+1

PUT/api/vets/{vetId}↗4

VetRestController ↗1updateVet()

for (Specialty spec : specialtyMapper.toSpecialty(vetDto.getSpecialties())) {+1

SpecialtyMapper ↗2toSpecialty(List)

if (specialties == null) {+1 for (SpecialtyDto specialtyDto : specialties) {+1

VetRestController ↗1updateSpecialties()

if (currentVet.getNrOfSpecialties() > 0) {+1

POST/api/visits↗4

VisitRestController ↗0addVisit()

VisitRestController ↗0bookVisit()

Pet ↗4requireValidVisitDate()

if (visitDate == null) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (visitDate.isAfter(latest)) {+1

PUT/api/visits/{visitId}↗4

VisitRestController ↗0updateVisit()

Pet ↗4requireValidVisitDate()

if (visitDate == null) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (birthDate != null && visitDate.isBefore(birthDate)) {+1 if (visitDate.isAfter(latest)) {+1

POST/api/vets↗3

VetRestController ↗0addVet()

VetMapper ↗0toVet(VetDto)

SpecialtyMapper ↗2toSpecialty(List)

if (specialties == null) {+1 for (SpecialtyDto specialtyDto : specialties) {+1

VetRestController ↗1updateSpecialties()

if (currentVet.getNrOfSpecialties() > 0) {+1

GET/api/visits/{visitId}↗3

VisitRestController ↗0getVisit()

VisitMapper ↗3toVisitDto()

Owner owner = pet == null ? null : pet.getOwner();+1 if (pet != null) {+1 if (owner != null) {+1

GET/jev↗3

JevTriageController ↗2triage()

String next = switch (specialty) {+1 if (emergency > 0.8) {+1

Jev ↗0choose()

Jev ↗0ask()

Jev ↗1answers()

return response.has("answers") ? response.get("answers") : response;+1

GET/api/pettypes↗2

PetTypeRestController ↗0listPetTypes()

PetTypeMapper ↗2toPetTypeDtos()

if (petTypes == null) {+1 for (PetType petType : petTypes) {+1

GET/api/specialties↗2

SpecialtyRestController ↗0listSpecialties()

SpecialtyMapper ↗2toSpecialtyDtos()

if (specialties == null) {+1 for (Specialty specialty : specialties) {+1

GET/api/vets/{vetId}↗2

VetRestController ↗0getVet()

VetMapper ↗0toVetDto()

SpecialtyMapper ↗2toSpecialtyDtos()

if (specialties == null) {+1 for (Specialty specialty : specialties) {+1

GET/history↗2

Assistant ↗0history()

ChatHistory ↗2transcript()

if (stored == null) {+1 for (int i = 0; i < stored.size(); i++) {+1

POST/api/notifications/visit-booked↗1

NotificationController ↗0visitBooked()

PhoneNumbers ↗1normalize(String)

return digits.startsWith("00") ? "+" + digits.substring(2) : digits;+1

POST/api/owners/{ownerId}/pets↗1

OwnerRestController ↗0addPetToOwner()

PetMapper ↗0toPet(PetFieldsDto)

PetMapper ↗1toPetType()

if (petTypeDto == null) {+1

PUT/api/pets/{petId}↗1

PetRestController ↗0updatePet()

PetMapper ↗1toPetType()

if (petTypeDto == null) {+1

DELETE/api/pettypes/{petTypeId}↗1

PetTypeRestController ↗1deletePetType()

} catch (DataIntegrityViolationException ex) {+1

GET/api/specialties/feed↗1

SpecialtyFeedController ↗1feed()

if (etag.equals(ifNoneMatch)) {+1

ANY/↗0

RootRestController ↗0redirectToSwagger()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

POST/api/owners↗0

OwnerRestController ↗0addOwner()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/api/owners/count↗0

OwnerRestController ↗0countOwners()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/api/owners/{ownerId}↗0

OwnerRestController ↗0deleteOwner()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

PUT/api/owners/{ownerId}↗0

OwnerRestController ↗0updateOwner()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

PUT/api/owners/{ownerId}/pets/{petId}↗0

OwnerRestController ↗0updateOwnersPet()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/api/pets/{petId}↗0

PetRestController ↗0deletePet()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

POST/api/pettypes↗0

PetTypeRestController ↗0addPetType()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/api/pettypes/{petTypeId}↗0

PetTypeRestController ↗0getPetType()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

PUT/api/pettypes/{petTypeId}↗0

PetTypeRestController ↗0updatePetType()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

POST/api/specialties↗0

SpecialtyRestController ↗0addSpecialty()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/api/specialties/{specialtyId}↗0

SpecialtyRestController ↗0deleteSpecialty()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/api/specialties/{specialtyId}↗0

SpecialtyRestController ↗0getSpecialty()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

PUT/api/specialties/{specialtyId}↗0

SpecialtyRestController ↗0updateSpecialty()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/api/vets/{vetId}↗0

VetRestController ↗0deleteVet()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/api/visits/{visitId}↗0

VisitRestController ↗0deleteVisit()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/firefighter↗0

FirefighterController ↗0firefighter()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

DELETE/history↗0

Assistant ↗0clearConversation()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/model↗0

Assistant ↗0model()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

GET/triage↗0

TriageController ↗0triage()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

MCP tools 7addedtotal

MCPcall_vet_ambulance↗6

PetClinicMcp ↗6callVetAmbulance()

if (context == null || !context.elicitEnabled()) {+1 if (context == null || !context.elicitEnabled()) {+1 if (elicit.action() != ElicitResult.Action.ACCEPT) {+1 String address = input == null ? null : input.address();+1 if (address == null || address.isBlank()) {+1 if (address == null || address.isBlank()) {+1

MCPcreate_visit↗6

PetClinicMcp ↗3createVisit()

if (pet.getOwner() == null || pet.getOwner().getId() != ownerId) {+1 if (pet.getOwner() == null || pet.getOwner().getId() != ownerId) {+1 if (LocalDateTime.of(visitDate, visitTime).isBefore(LocalDateTime.now())) {+1

PetClinicMcp ↗1requireFutureDate()

if (d.isBefore(LocalDate.now())) {+1

PetClinicMcp ↗2requireUnderUpcomingVisitCap()

.filter(v -> v.getDate() != null && !v.getDate().isBefore(today))+1 if (upcoming >= MAX_UPCOMING_VISITS_PER_PET) {+1

MCPlist_visits↗3

PetClinicMcp ↗3listVisits()

for (Pet pet : owner.getPets()) {+1 for (Visit v : pet.getVisitsSortedByDate()) {+2

MCPLocalTools.sendEmail↗2

LocalTools ↗2sendEmail()

if (to == null || to.toString().isBlank()) {+1 if (to == null || to.toString().isBlank()) {+1

MCPcancel_visit↗2

PetClinicMcp ↗1cancelVisit()

if (matching.isEmpty()) {+1

PetClinicMcp ↗1requireFutureDate()

if (d.isBefore(LocalDate.now())) {+1

MCPget_owner_profile↗1

PetClinicMcp ↗0getOwnerProfile()

PetClinicMcp ↗1formatPet()

String type = pet.getType() == null ? "?" : pet.getType().getName();+1

MCPLocalTools.currentDateTime↗0

LocalTools ↗0currentDateTime()

Nothing counted: every method behind this entry point is straight-line code. Cognitive complexity charges for branching, loops and boolean runs, and there are none here.

Jobs 1addedtotal

JOBRagIngestion.poll↗17

RagIngestion ↗10poll()

if (lastEtag != null) {+2 if (status == 200) {+2 applyChange(items == null ? List.of() : items, response.getHeaders().getETag());+3 } catch (Exception e) {+1 if (reachable) { // log only on the first failure, then stay quiet until the backend is back+2

RagIngestion ↗6applyChange()

if (!embeddedSpecialtyIds.isEmpty()) {+1 for (Item item : items) {+1 if (item.description() == null || item.description().isBlank()) {+2 if (item.description() == null || item.description().isBlank()) {+1 if (!documents.isEmpty()) {+1

RagIngestion ↗1persist()

} catch (Exception e) {+1

Logging

Uses of common Java logging libraries

Found by syntax-aware search over Java sources

None. Not one logging statement was added or changed on the lines this change set touches.

CODEOWNERS

Needs approval as per .github/CODEOWNERS

⚠️APPROVAL REQUIRED@victorrentea/tech-leads

🚩APPROVAL REQUIRED@victorrentea/elders

pom.xmlclaimed by **/pom.xml

Cost

Token costs

step you agent cost

ImplementationClaude Code 8782fda6 7 min 36 min $15.98Opus 5.5

ReviewClaude Code 8782fda6 · the reviewers and their brief 19 s 16 min $5.67Opus 5.5

Auto-fixesClaude Code 8782fda6 · deciding and fixing 2 min 58 min $9.73Opus 5.5 · Sonnet 5.5

claude -p on Sonnet 5.5 · requirements↔tests mappingplus 15 min of later refreshes, no model — 2 min $0.39Sonnet 5.5

tab	cost
Testsrequirements↔tests mapping, claude -p on Sonnet 5.5	$0.39
Demo	$0.31
Review	–
API	–
Data	–
Sequence	–
Structure	–
Code City	–
UX	–
Complexity	–
Logging	–
CODEOWNERS	–
assembling the guide itself — writing every tab’s text, in one pass at the end	$0.60
the orchestrating conversation — reading results, deciding, recovering from failures	$7.57
Totalthe “this guide” row above says $0.39: the two were measured over stretches this build cannot name; $8.48 more here	$8.87

VoicesFish Audio, 2 voices < $0.01s2.1-pro-free

Total 9 min 1 h 52 min $31.77

Building human-review itself — the tool, not this change

$3,546token cost (subsidized)29 hVictor’s time, estimated161 hagent time

186 sessions, 27 Aug 2026 → 8 Oct 2026

PR#51 Owners grid: paged and sorted by Name or City (#25)

Implementation assumptions

Open review issues

Auto-fixed

Intro video

OpenAPI visual diff

Issue #25: Add pagination to Owners grid

Sequence diagrams of tests

Structure diagrams

Impact on code size, complexity, coupling, …

UX design system

Cognitive Complexity per Entry Point

Uses of common Java logging libraries

Needs approval as per .github/CODEOWNERS

Token costs


1		-<div class="container-fluid main-wrapper">
	1	+<div class="main-wrapper">
2	2	<nav class="navbar navbar-default " role="navigation">
3	3	<div class="container-fluid">
4	4	<div class="navbar-header">

		body {
8	8
9	9	.main-wrapper {
10	10	flex: 1;
11		- /* the navbar runs edge to edge, not inside the container's gutter */
12		- padding-left: 0;
13		- padding-right: 0;
14	11	}
15	12
16	13	div.navbar-header {

Implementation assumptions

Open review issues

Auto-fixed

Intro video⚙️🤖

OpenAPI visual diff

Issue #25: Add pagination to Owners grid⚙️⏳🤖

Sequence diagrams of tests⚙️

Structure diagrams⚙️

Impact on code size, complexity, coupling, …⚙️⏳

UX design system⚙️

Cognitive Complexity per Entry Point⚙️

Uses of common Java logging libraries⚙️

Needs approval as per .github/CODEOWNERS⚙️

Token costs

Intro video

Issue #25: Add pagination to Owners grid

Sequence diagrams of tests

Structure diagrams

Impact on code size, complexity, coupling, …

UX design system

Cognitive Complexity per Entry Point

Uses of common Java logging libraries

Needs approval as per .github/CODEOWNERS
